MH-2001 Multi-Homing Security Gateway User’s Manual

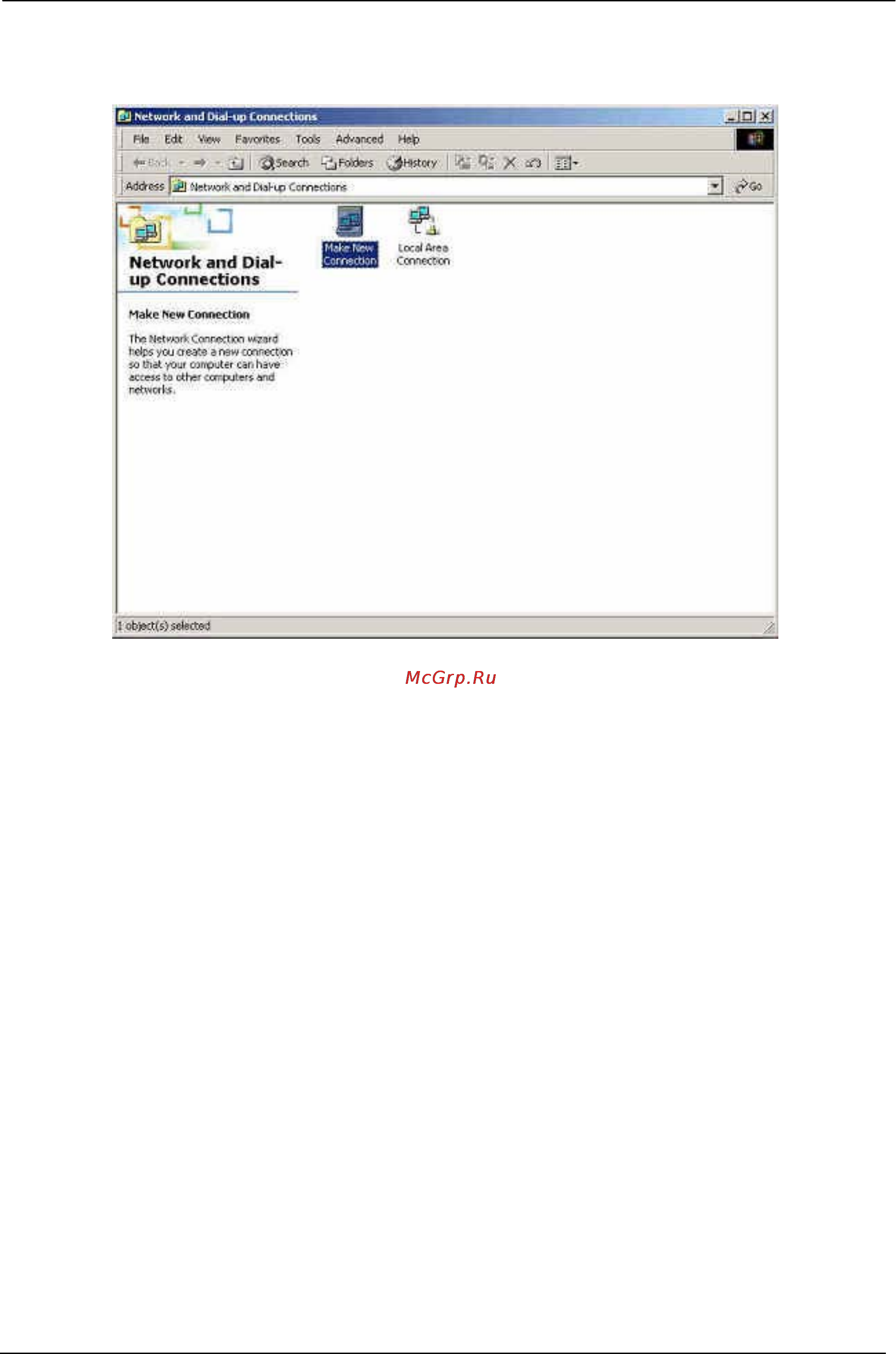

STEP 7 . In Network and Dial-up Connection, click Make New Connection.
Network and Dial-up Connection
- 225 -
