MH-2001 Multi-Homing Security Gateway User’s Manual
The Default Gateway of Company A is the MH-2001 LAN IP 192.168.10.1. Follow the steps
below:

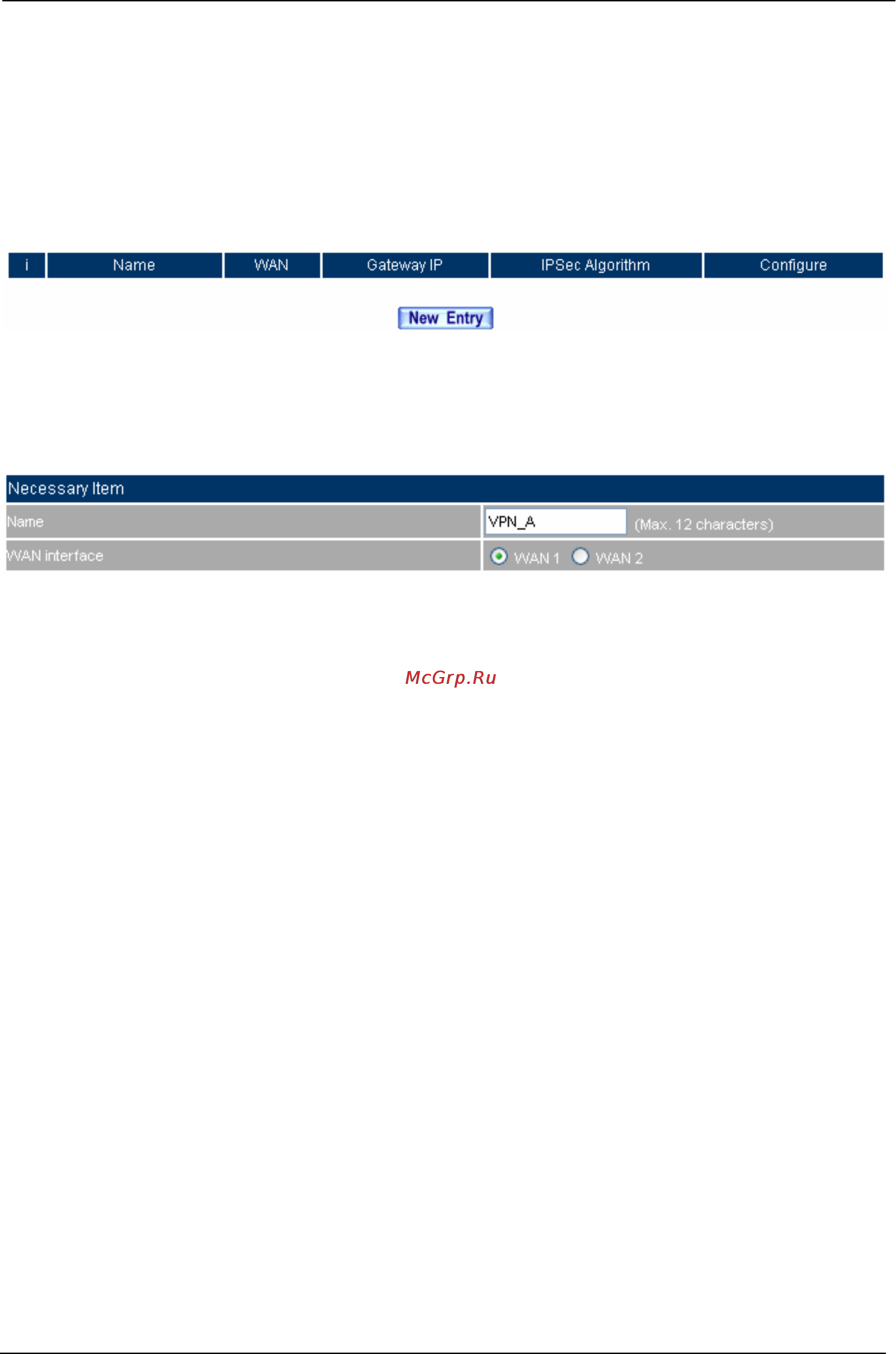

STEP 1 . Enter the default IP of Gateway of Company A’s MH-2001, 192.168.10.1 and select IPSec Autokey
in VPN. Click New Entry.
IPSec Autokey WebUI
STEP 2 . In the list of IPSec Autokey, fill in Name with VPN_A.
IPSec Autokey Name Setting
- 112 -
