MH-2001 Multi-Homing Security Gateway User’s Manual
6.9.3 Example.3
The way to set the IPSec VPN connection between two MH-2001 appliances.
(Aggressive mode) (The IPSec algorithm, 3DES encryption, MD5 authentication).
The Deployment
Company A : WAN IP 61.11.11.11
LAN IP 192.168.10.X
Company B : WAN IP 211.22.22.22
LAN IP 192.168.20.X
We use two MH-2001 devices to be the platform. Assume that A Company 192.168.10.100 want to build the
VPN to B Company 192.168.20.100, in order to download the shared documents. (Aggressive mode)

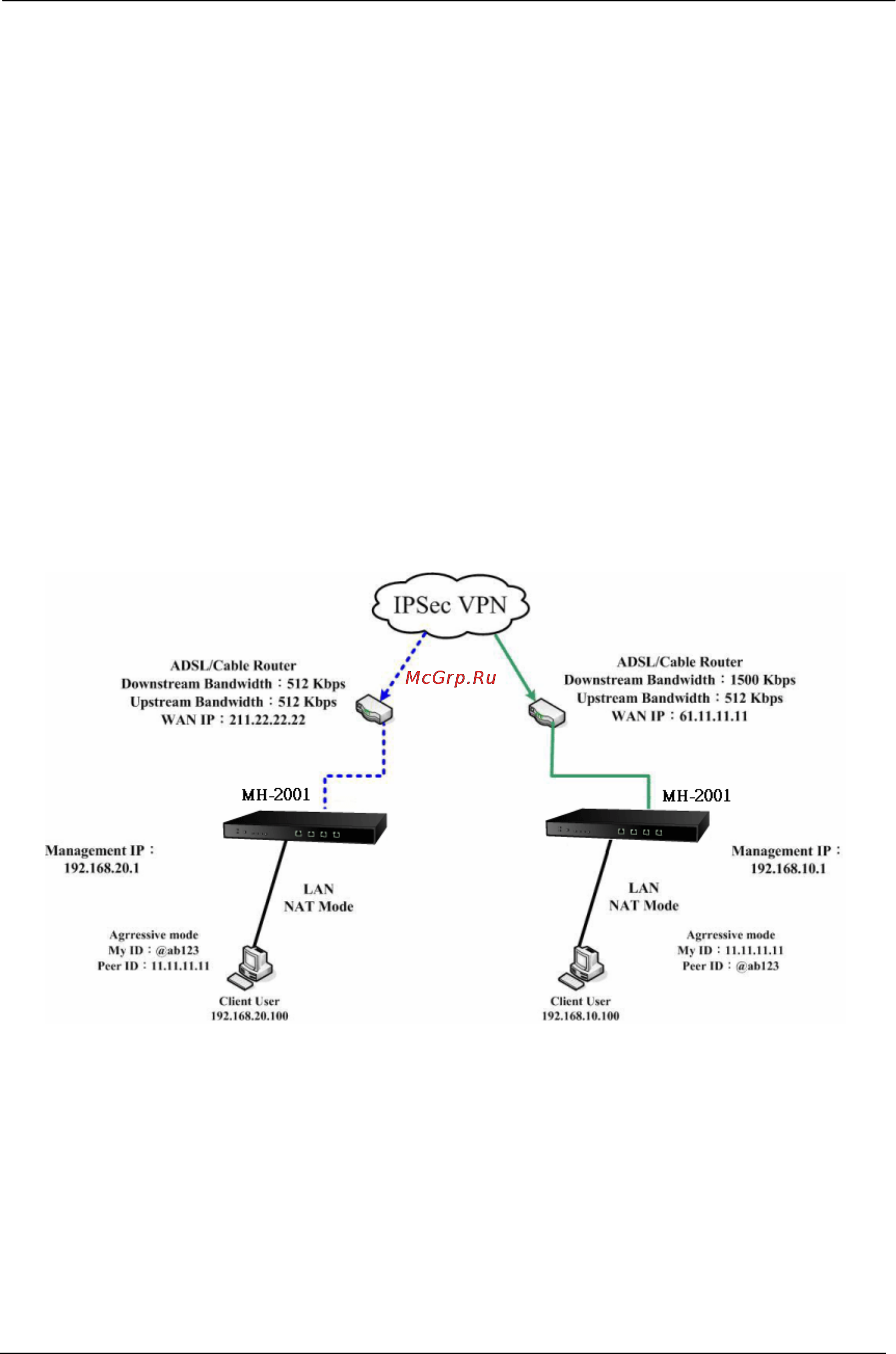

TEST Environment
The IPSec VPN aggressive mode deployment
- 182 -
