MH-2001 Multi-Homing Security Gateway User’s Manual
The B Company‘s default gateway is the MH-2001’s LAN IP 192.168.20.1. Add the following
settings：

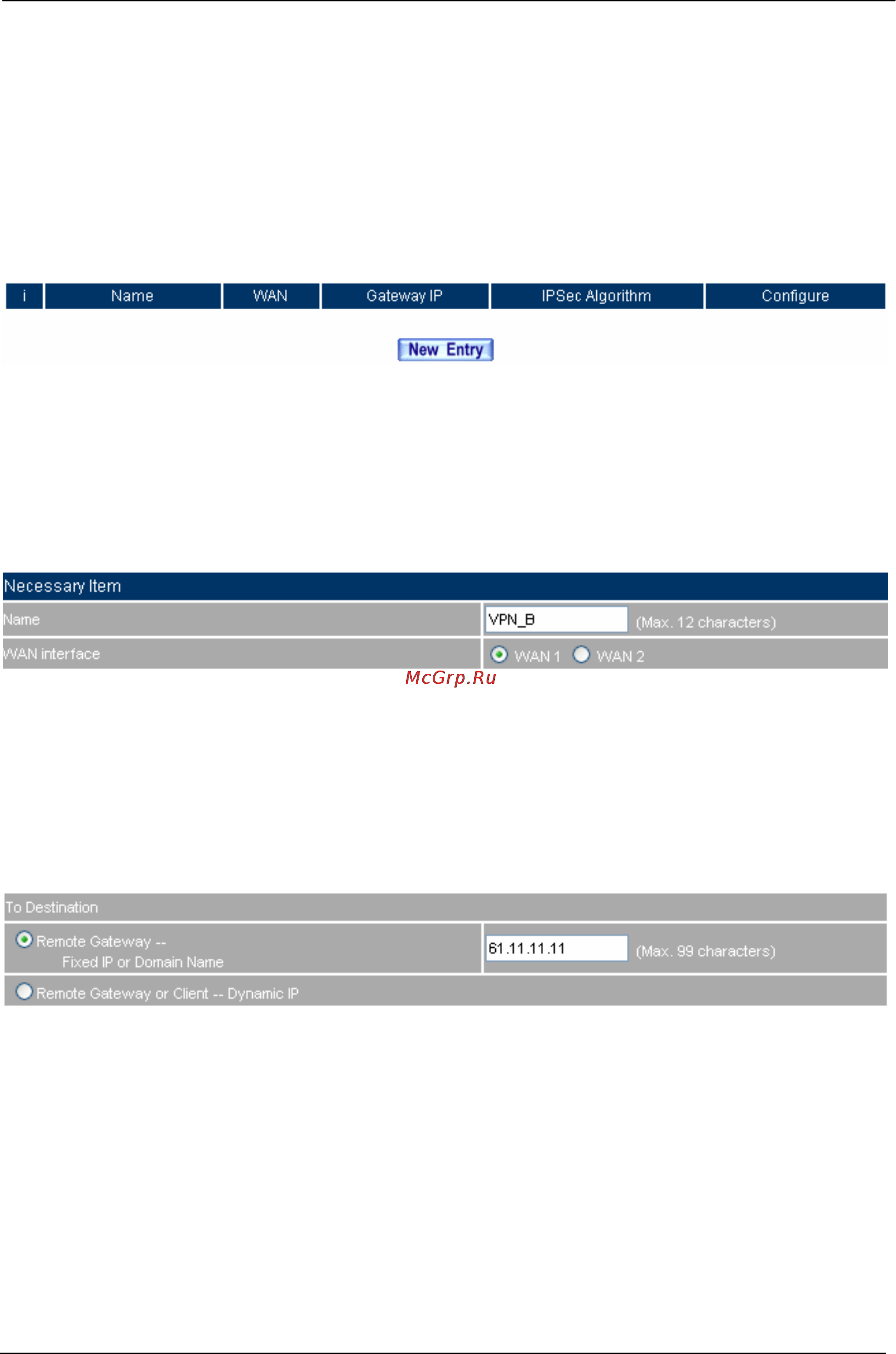

STEP 13 . Enter B Company‘s default IP address 192.168.20.1. Click VPN Æ IPSec Autokey, click New
Entry.
IPSec Autokey
STEP 14 . In IPSec Autokey, enter VPN_B in Name. In WAN interface, select WAN 1, in order to build the B
Company’s VPN.
Set the IPSec VPN name and WAN interface setting
STEP 15 . In To Destination, select Remote Gateway –Fixed IP or Domain Name, enter the Remote IP
address to link to A Company.
The IPSec To Destination IP setting
- 189 -
