MH-2001 Multi-Homing Security Gateway User’s Manual

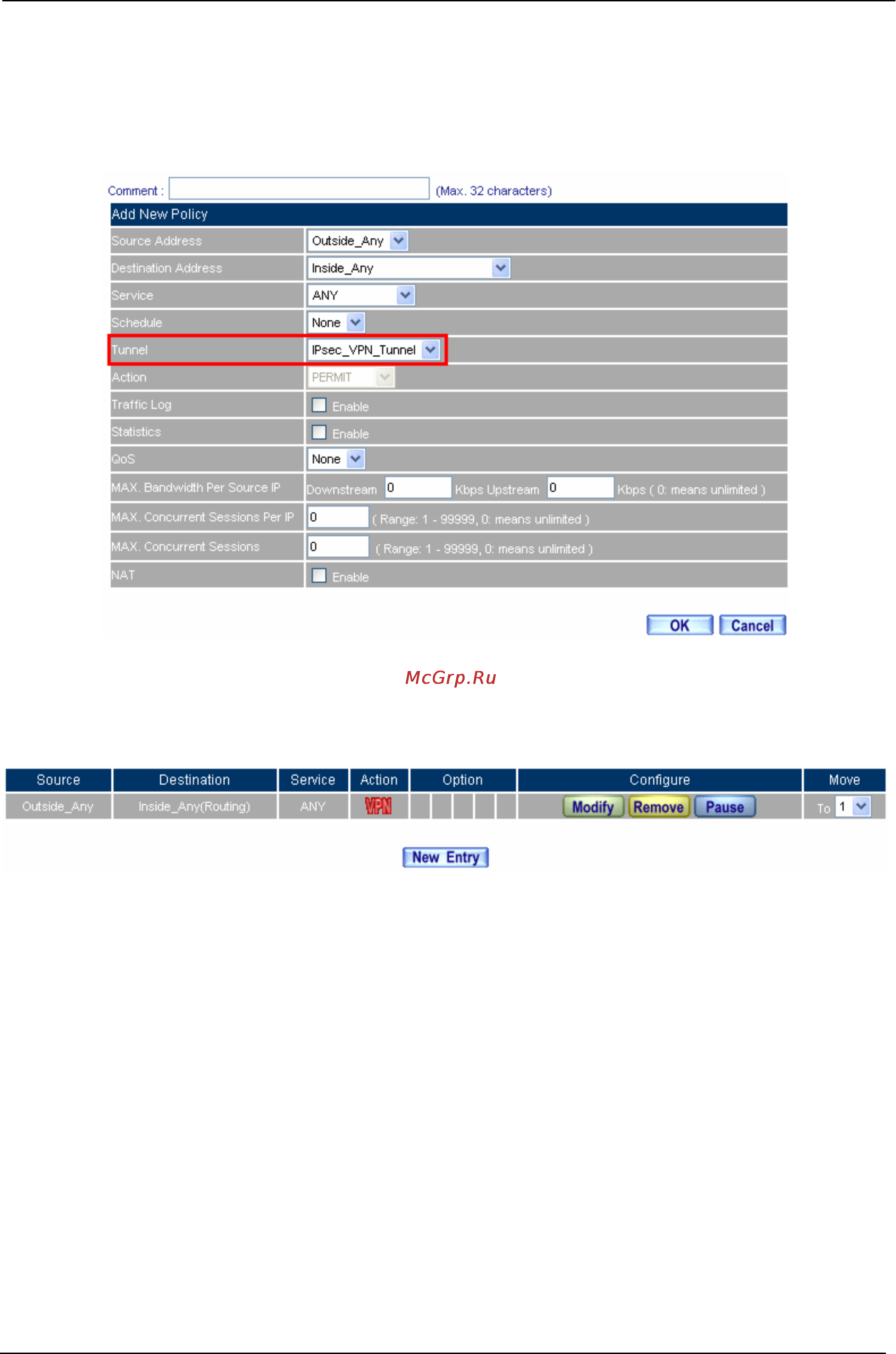

STEP 12 . In Policy Æ Incoming , add the following settings：
Tunnel, select IPSec_VPN_Tunnel.
Click OK.
Set the incoming policy included the VPN Tunnel
Complete the incoming policy setting included the VPN Tunnel
- 188 -
