MH-2001 Multi-Homing Security Gateway User’s Manual
The B Company’s real IP is 211.22.22.22, add the following settings：

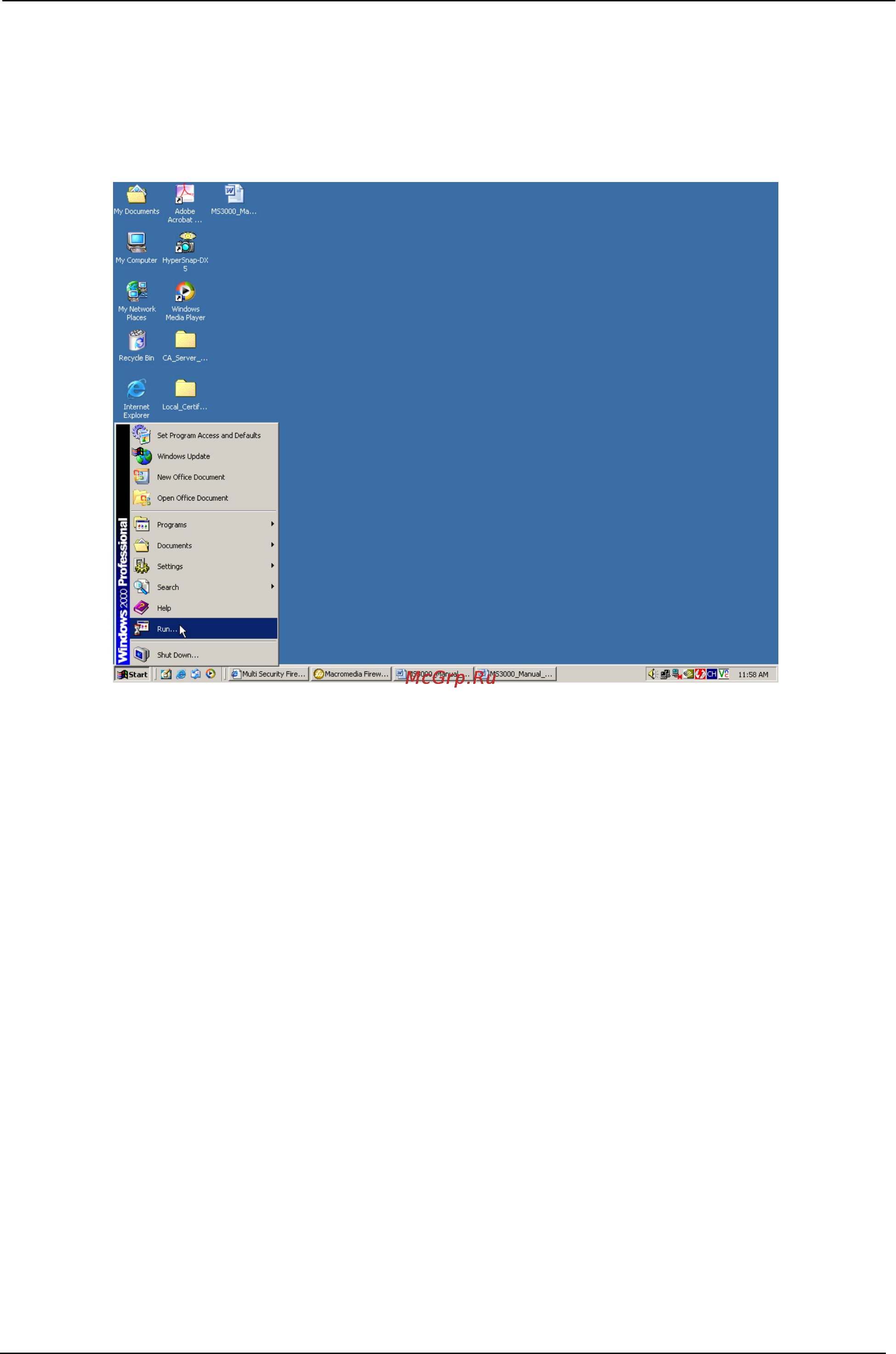

STEP 12 . Click Start Æ Run in Windows 2000
Start the IPSec VPN setting in Windows 2000
- 131 -
