MH-2001 Multi-Homing Security Gateway User’s Manual

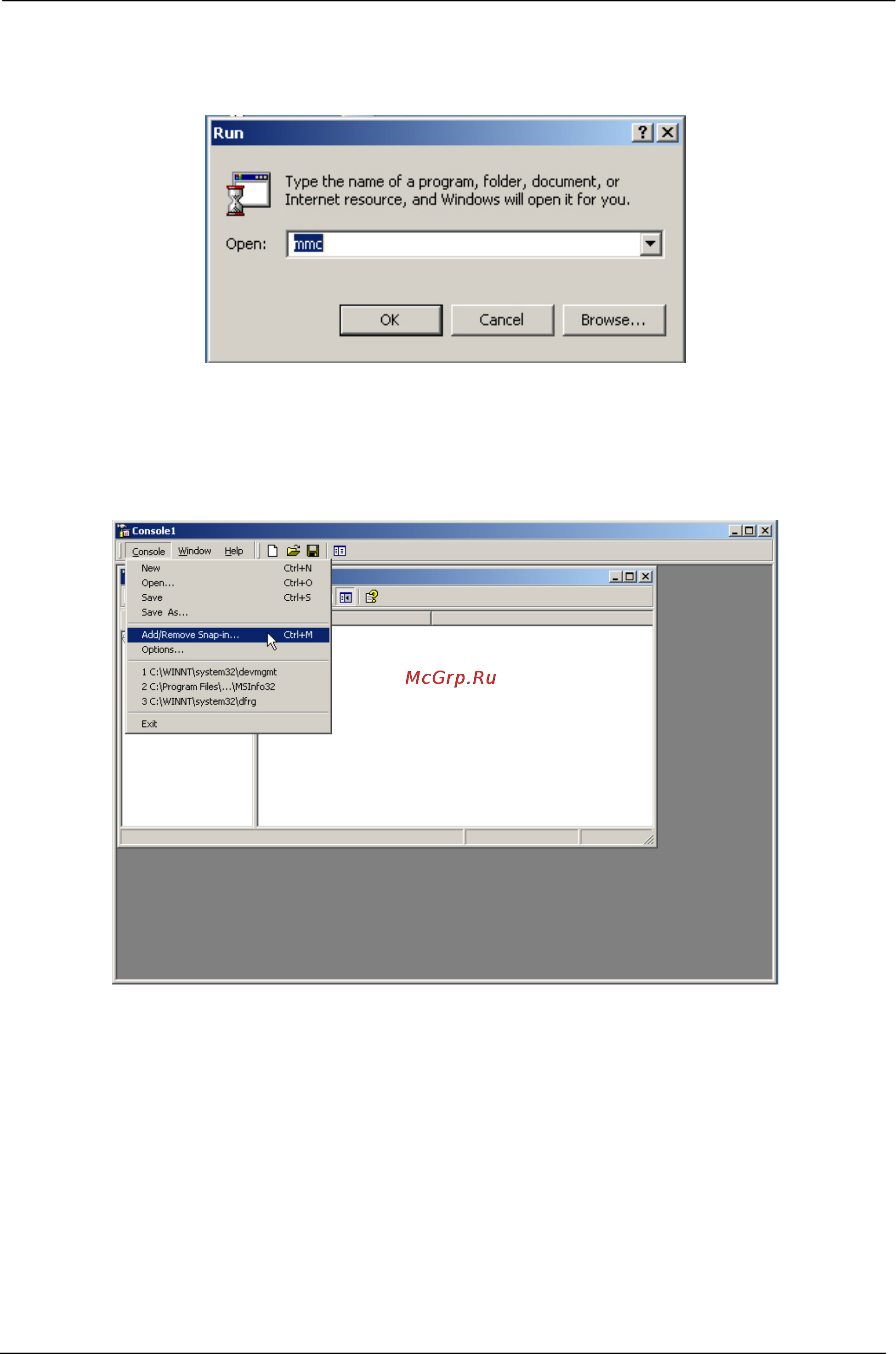

STEP 13 . In Run Æ Open column, enter mmc.
To startup the Windows 2000 IPSec VPN setting
STEP 14 . In Console 1 Æ ConsoleÆ Add/Remove Snap-in.
Add / Remove Snap-in .
- 132 -
