MH-2001 Multi-Homing Security Gateway User’s Manual
6.1.7 Example1
Under DHCP situation, assign the specific IP to static users and restrict them to
access FTP net service only through policy
STEP 1﹒Select LAN in Address and enter the following settings:
Click New Entry button
Name: Enter Rayearth
IP Address: Enter 192.168.3.2
Netmask: Enter 255.255.255.255
MAC Address : Enter the user’s MAC Address（00:B0:18:25:F5:89）
Select Get static IP address from DHCP Server
Click OK

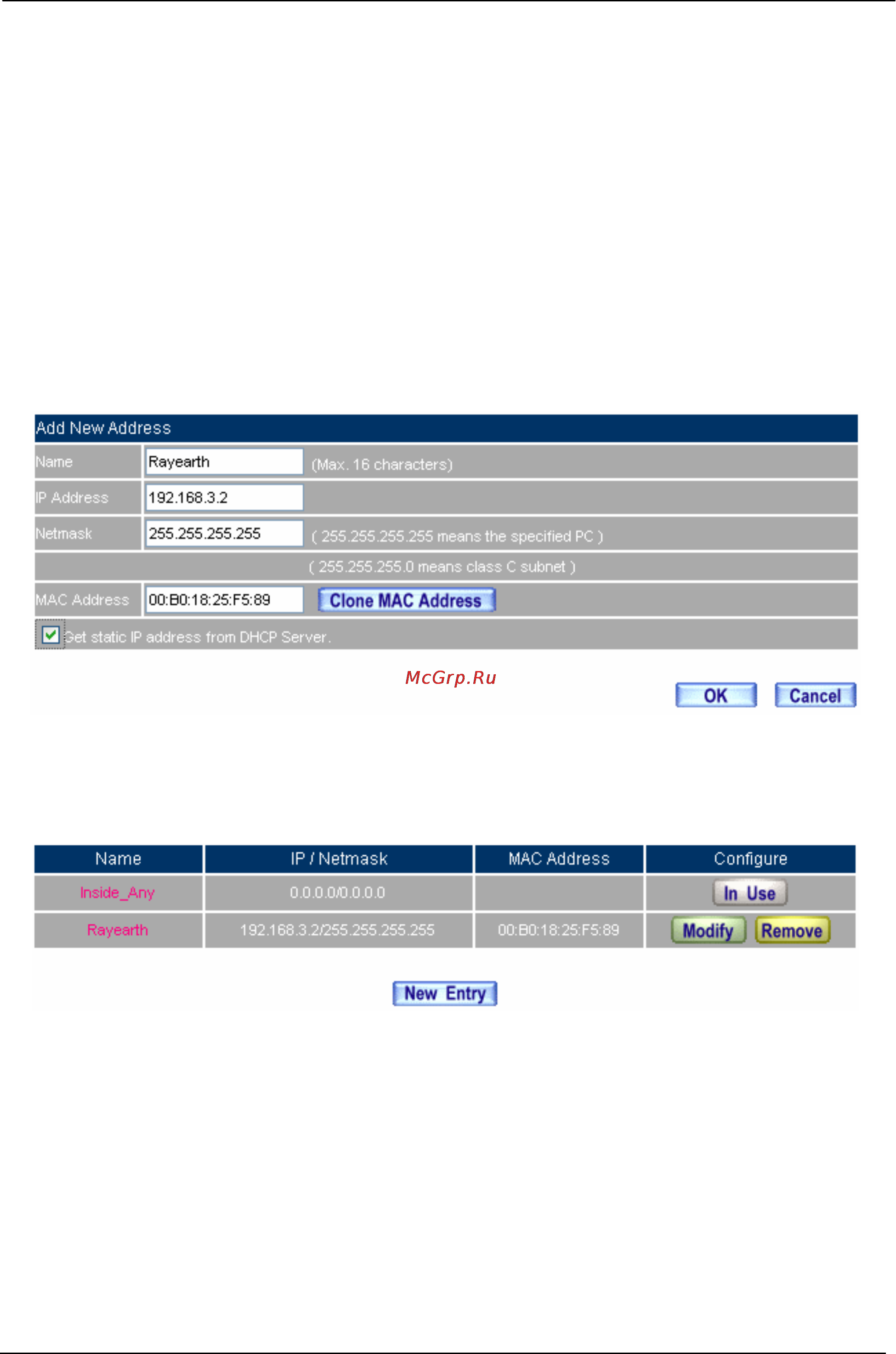

Setting LAN Address Book WebUI
Complete the Setting of LAN
- 51 -
