MH-2001 Multi-Homing Security Gateway User’s Manual
STEP 2﹒Adding the following setting in Outgoing Policy:

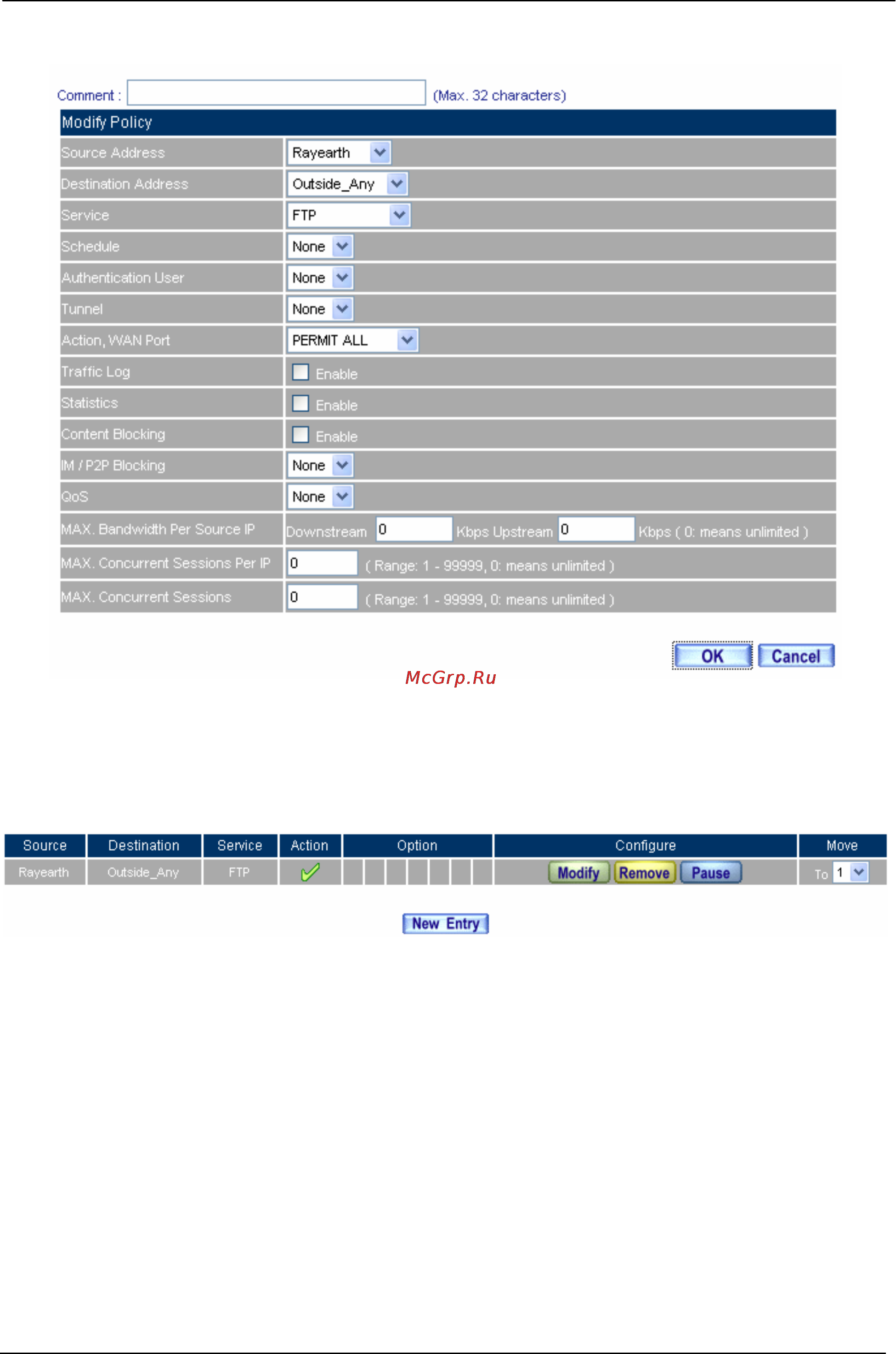

Add a Policy of Restricting the Specific IP to Access to Internet
STEP 3﹒Complete assigning the specific IP to static users in Outgoing Policy and restrict them to access
FTP net service only through policy:
Complete the Policy of Restricting the Specific IP to Access to Internet
- 52 -
