MH-2001 Multi-Homing Security Gateway User’s Manual

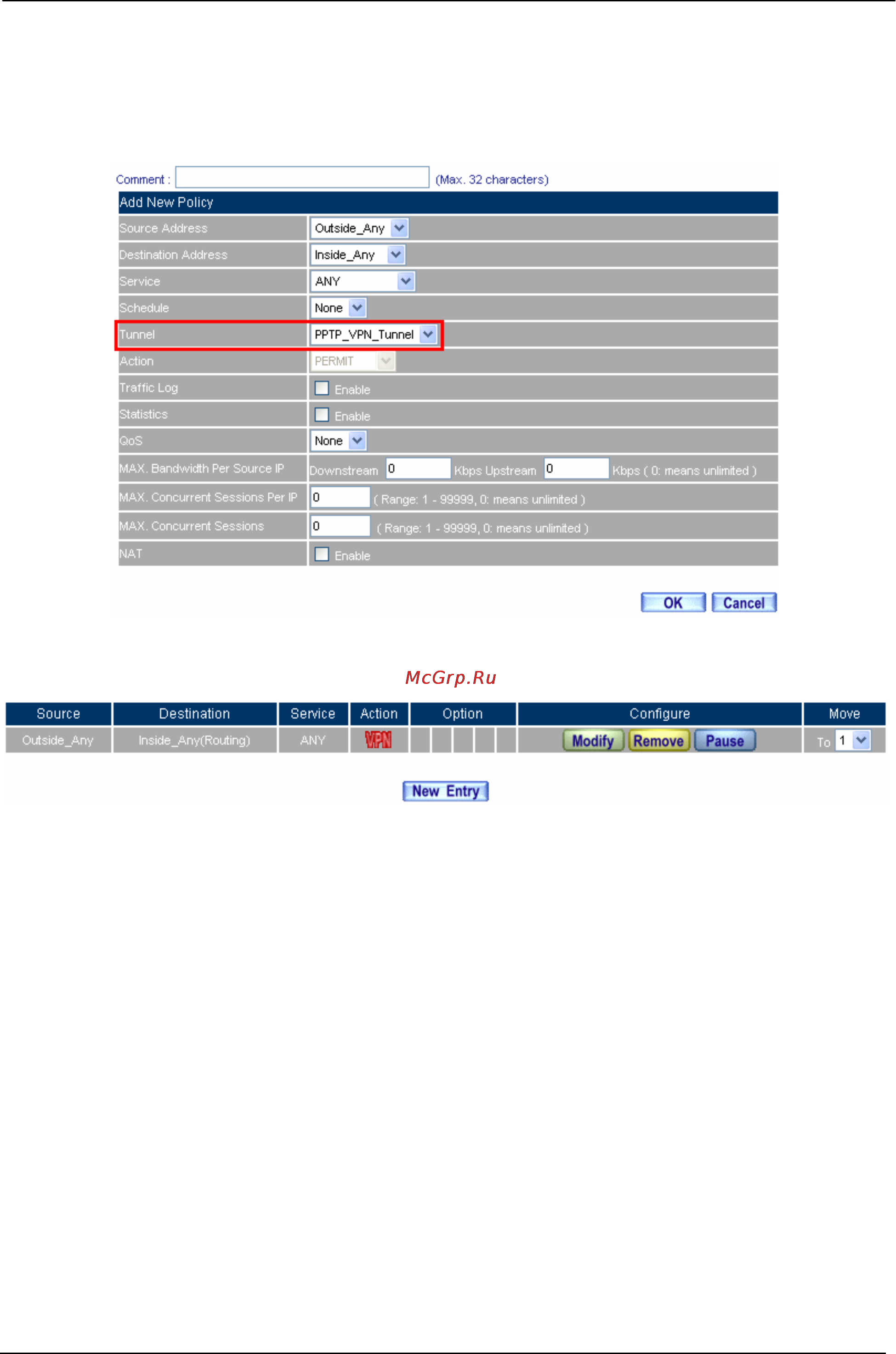

STEP 5 . In Policy Æ Incoming, add the following settings：
Tunnel, select PPTP_VPN_Tunnel.
Click OK.
To set the incoming policy included the VPN Tunnel
Complete to set the incoming policy included the VPN Tunnel
- 223 -
