MH-2001 Multi-Homing Security Gateway User’s Manual
STEP 2 . When the system detects the DDoS attack packets, it will show the message in Anomaly Flow IP Æ
Viru-infected IP. Or send the Net BIOS Notification to the MIS and virus-infected PC.

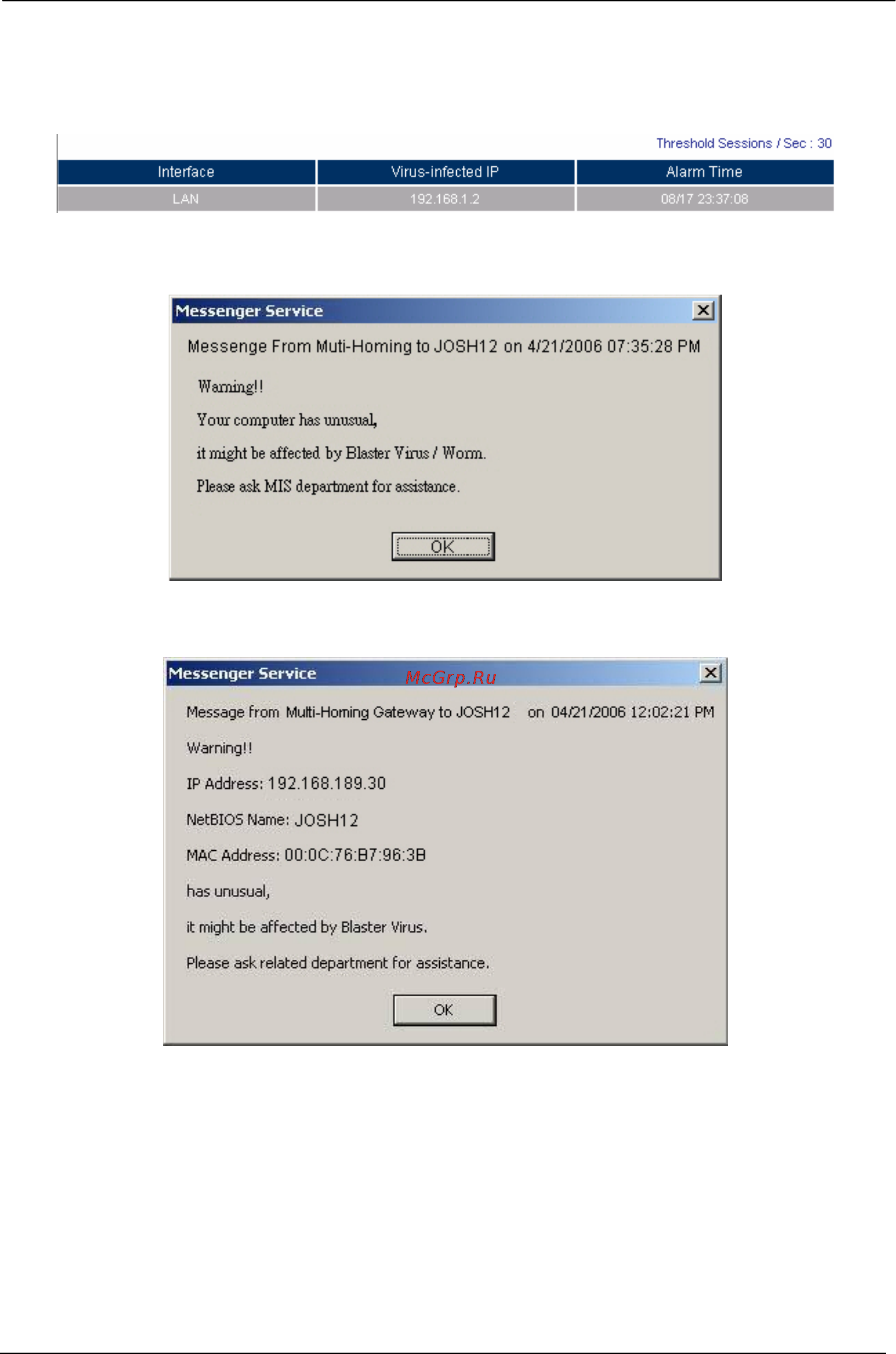

Anomaly flow IP and Virus-infected IP
Send the NetBIOS Alert notification to the virus-infected PC
Send the NetBIOS Alert Notification to the MIS engineer
- 257 -
