MH-2001 Multi-Homing Security Gateway User’s Manual
STEP 3 . Enable the System Æ E-Mail alert notification, and then the MH-2001 will send the mail notice to
the MIS engineer.

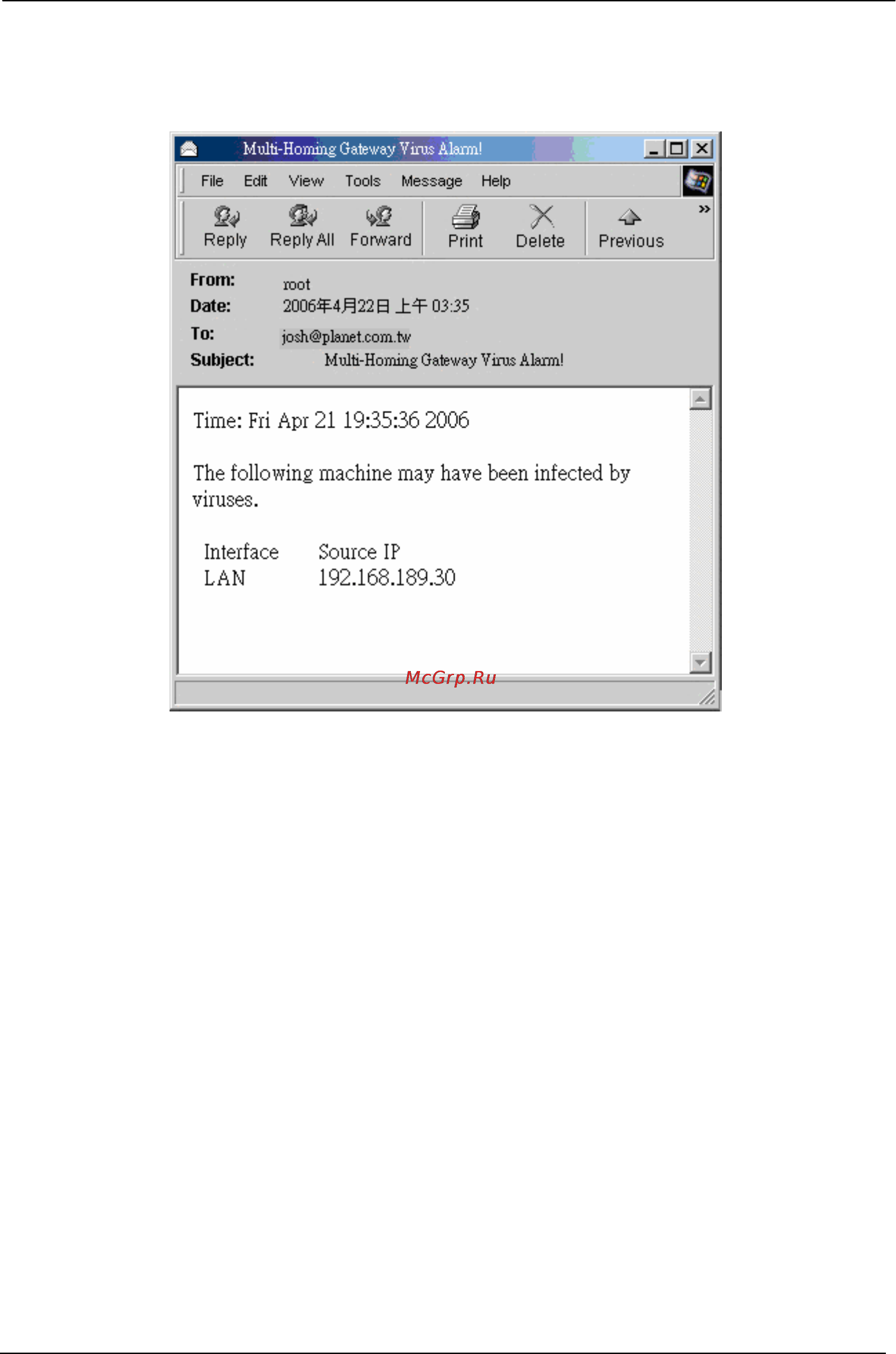

Send the e-mail alert notification
- 258 -
