MH-2001 Multi-Homing Security Gateway User’s Manual

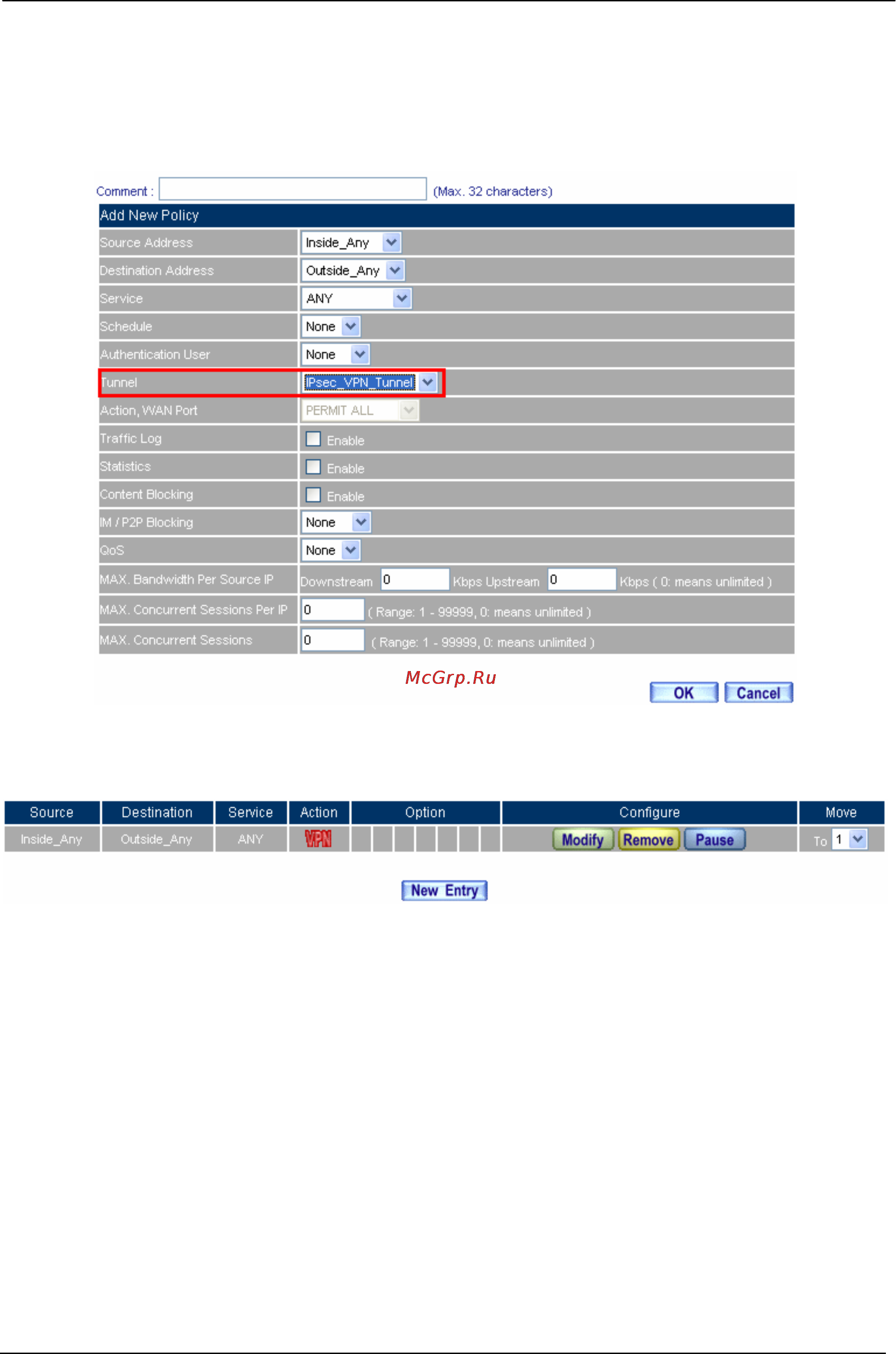

STEP 10 . In Policy Æ Outgoing, add the following settings：
Tunnel, select IPSec_VPN_Tunnel.
Click OK.
Set the outgoing policy setting included the VPN Tunnel
Complete the outgoing policy setting included the VPN Tunnel
- 129 -
