MH-2001 Multi-Homing Security Gateway User’s Manual

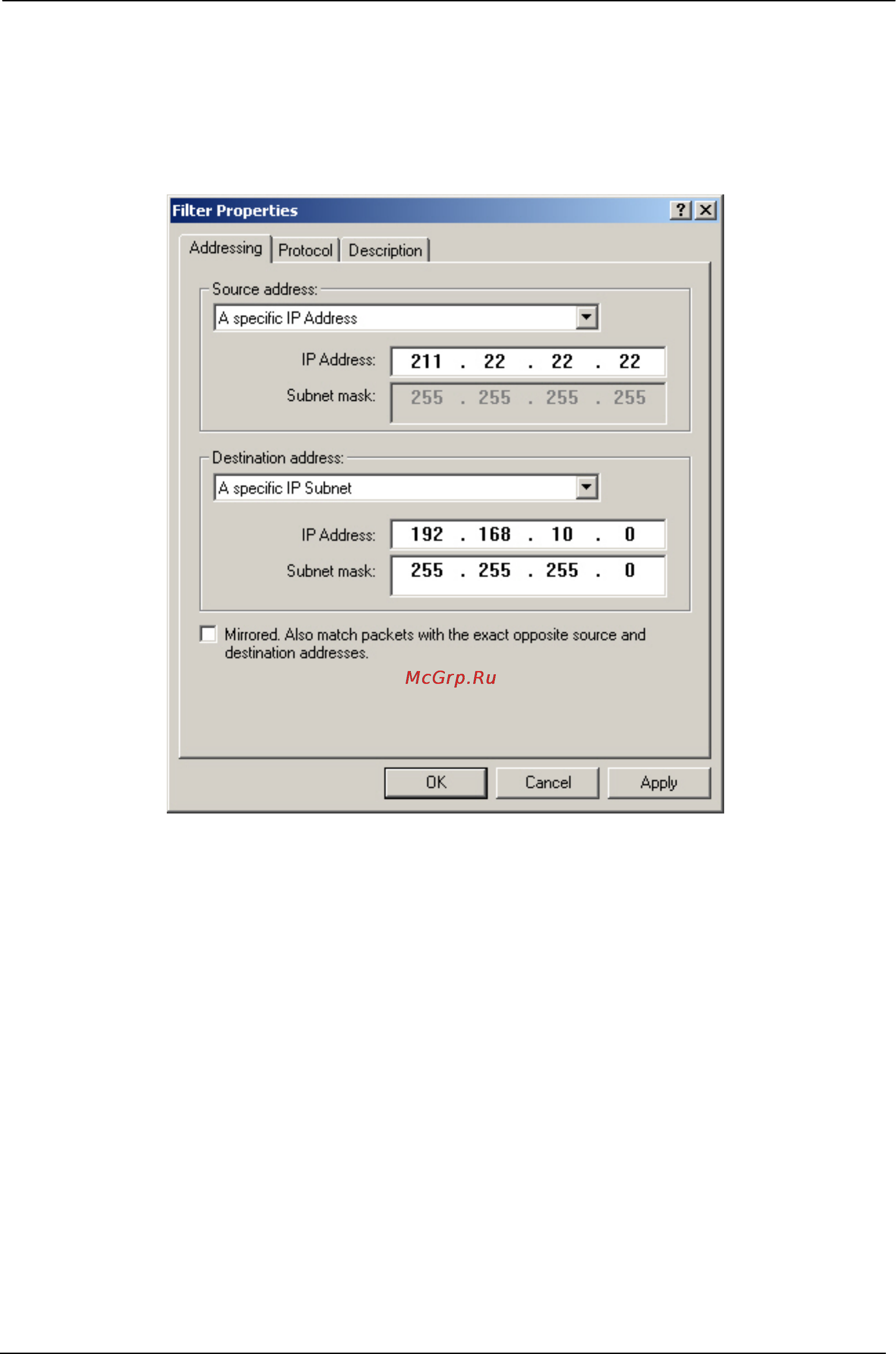

STEP 26 . In Filter Properties Æ Source address Æ A specific IP Address, enter B Company’s WAN IP
address 211.22.22.22 , Subnet mask 255.255.255.255 . In Destination address Æ A specific IP
Subnet, enter A Company‘s LAN IP address 192.168.10.0, subnet mask 255.255.255.0. Do not select
Mirrored. Also match packets with the exact opposite source and destination addresses.
Filter Properties
- 144 -
