MH-2001 Multi-Homing Security Gateway User’s Manual

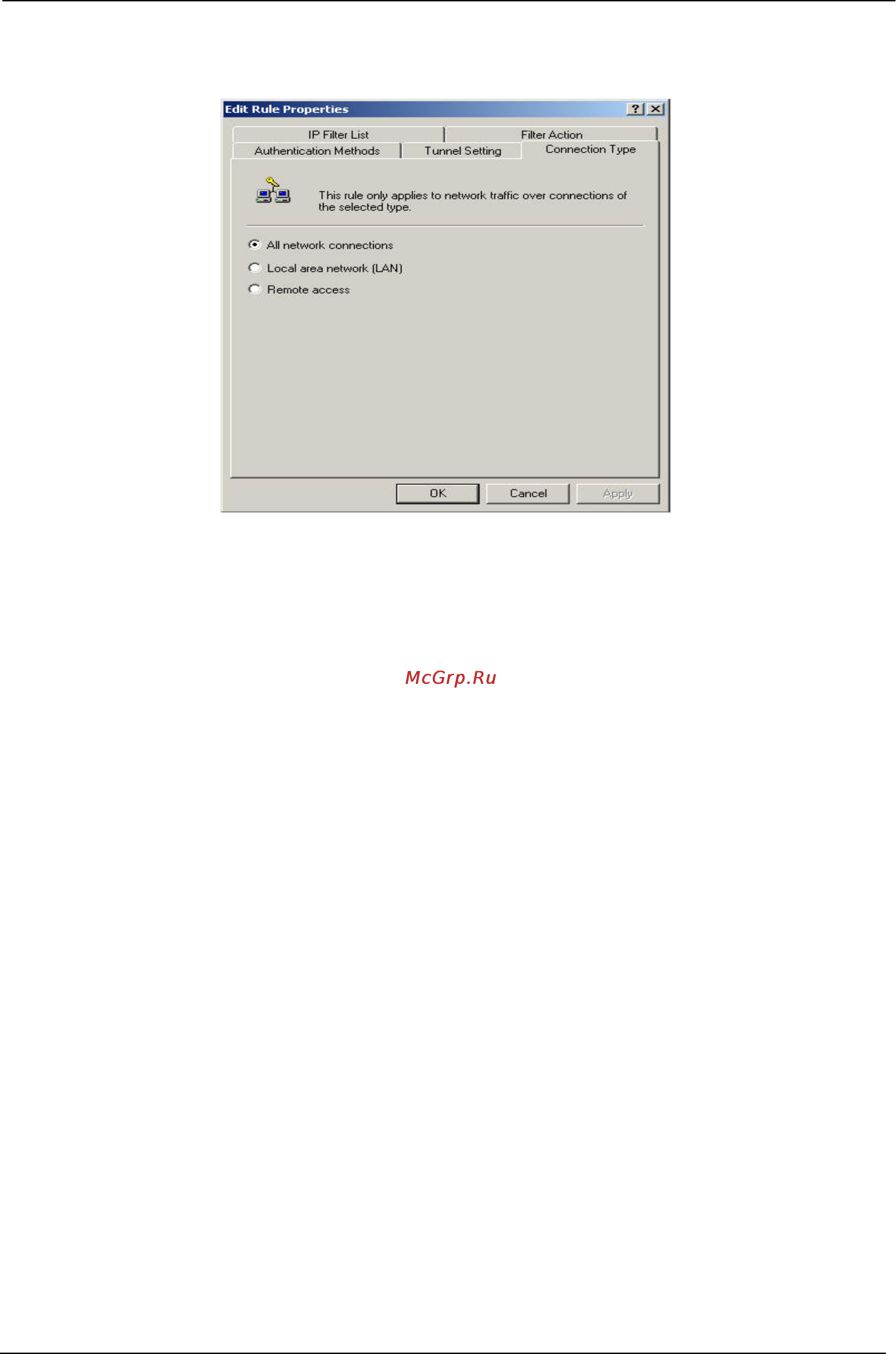

STEP 33 . In New Rule Properties Æ Connection Type, select All network connections.
Connection Type setting
- 151 -
