MH-2001 Multi-Homing Security Gateway User’s Manual

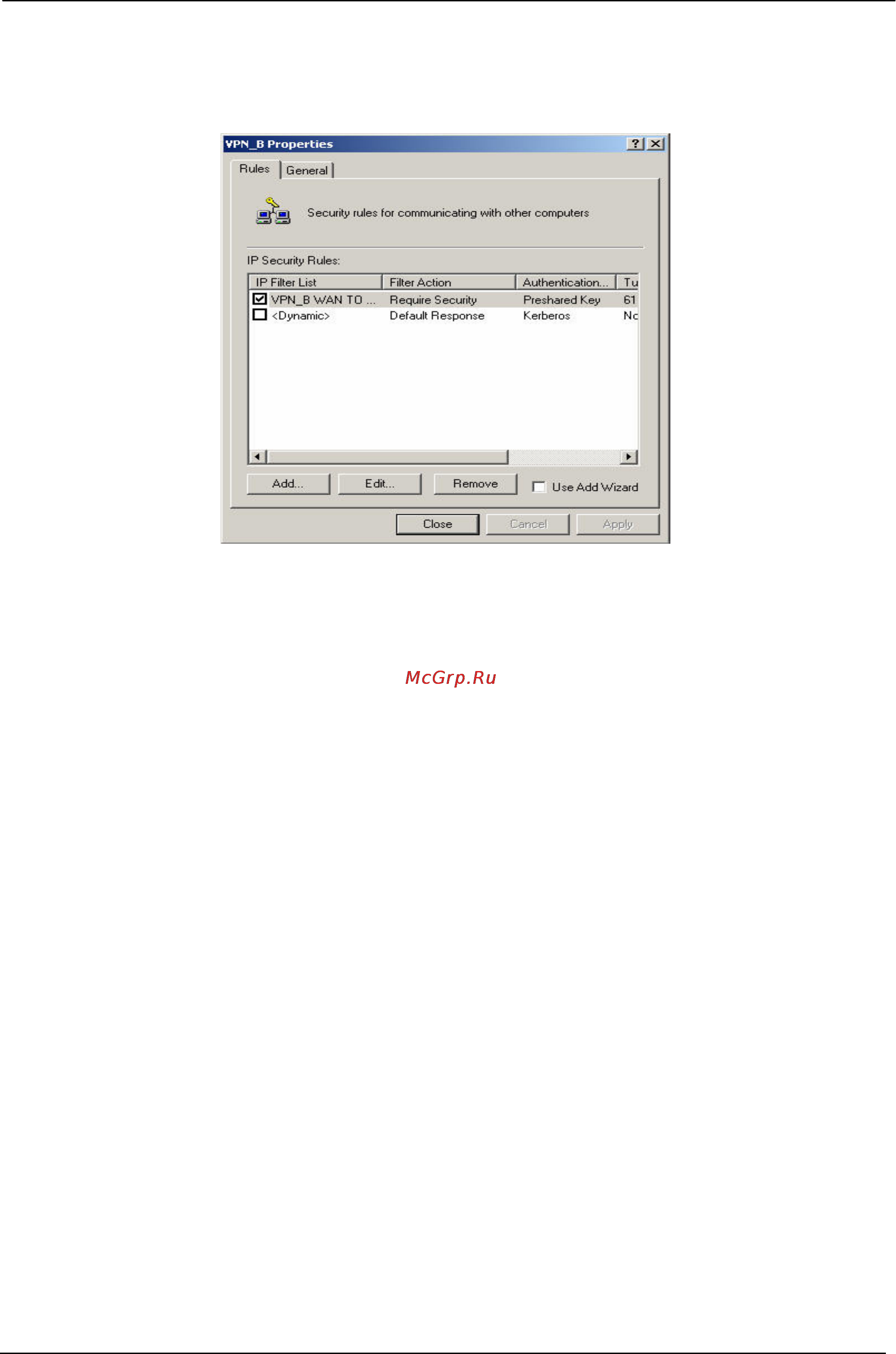

STEP 39 . In VPN _B Properties, do not select Use Add Wizard. Click Add, to add the second IP security
policy.
The VPN_B Properties
- 157 -
