MH-2001 Multi-Homing Security Gateway User’s Manual

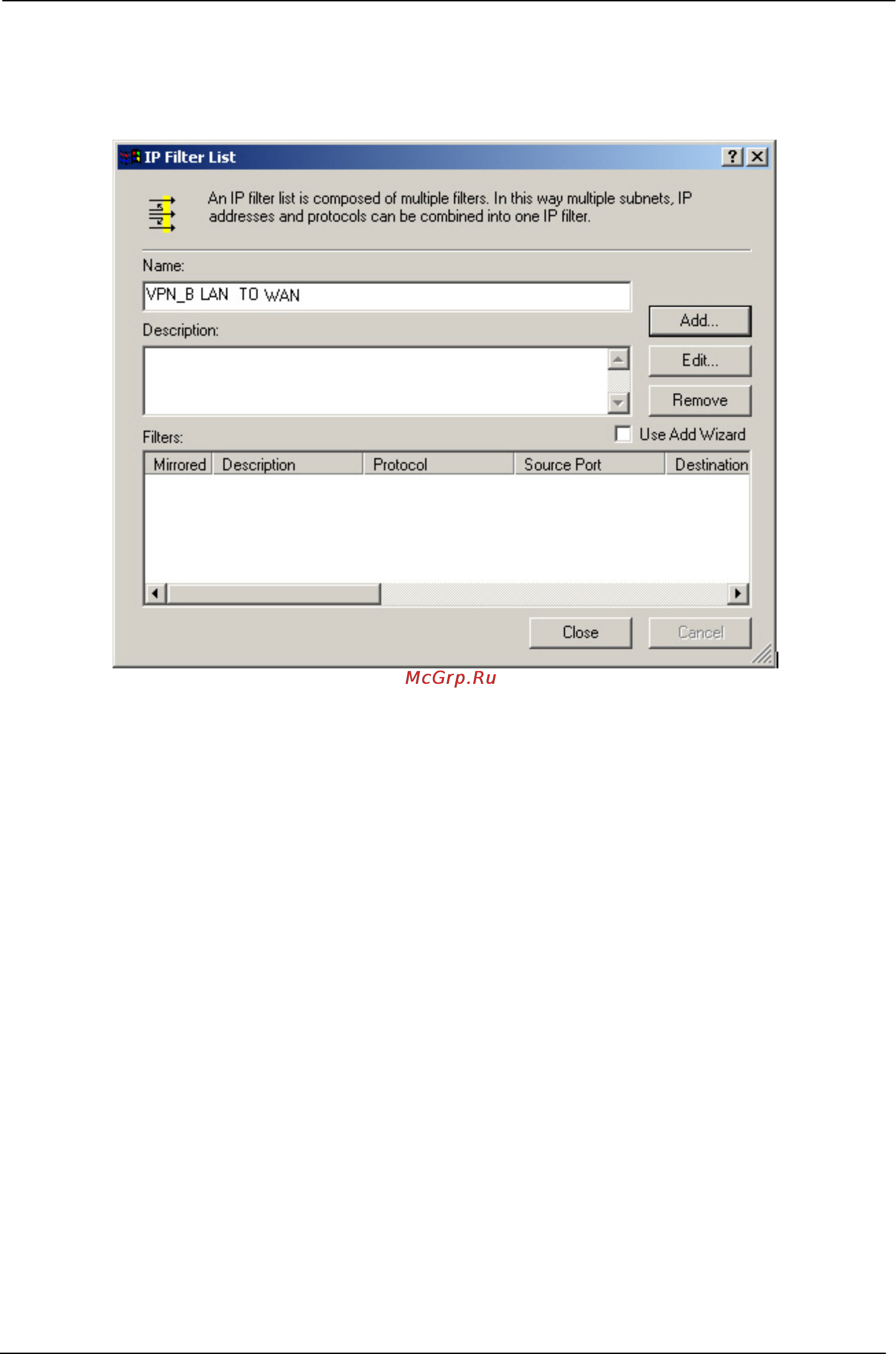

STEP 41 . In IP Filter List, do not select Use Add Wizard. Modify the Name into VPN_B LAN TO WAN, click
Add.
IP Filter List
- 159 -
