MH-2001 Multi-Homing Security Gateway User’s Manual
STEP 48 . Select Data integrity and encryption (ESP). Integrity algorithm, select MD5. Encryption
algorithm, select 3DES. Also select Generate a new key every, enter 28800 seconds. Click OK to back
to New Rule Properties.

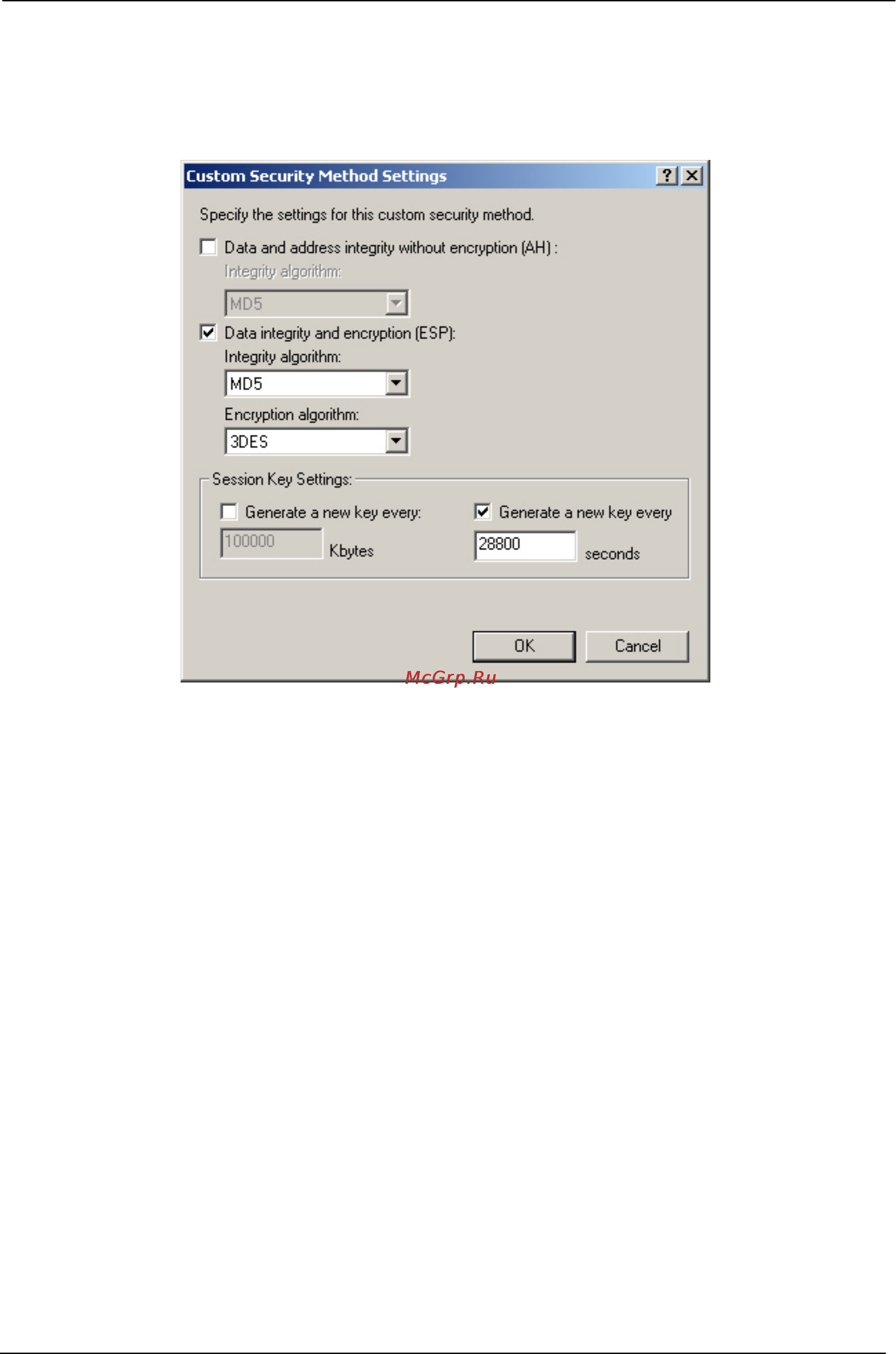

Complete the Custom Security Methods setting
- 166 -
