MH-2001 Multi-Homing Security Gateway User’s Manual

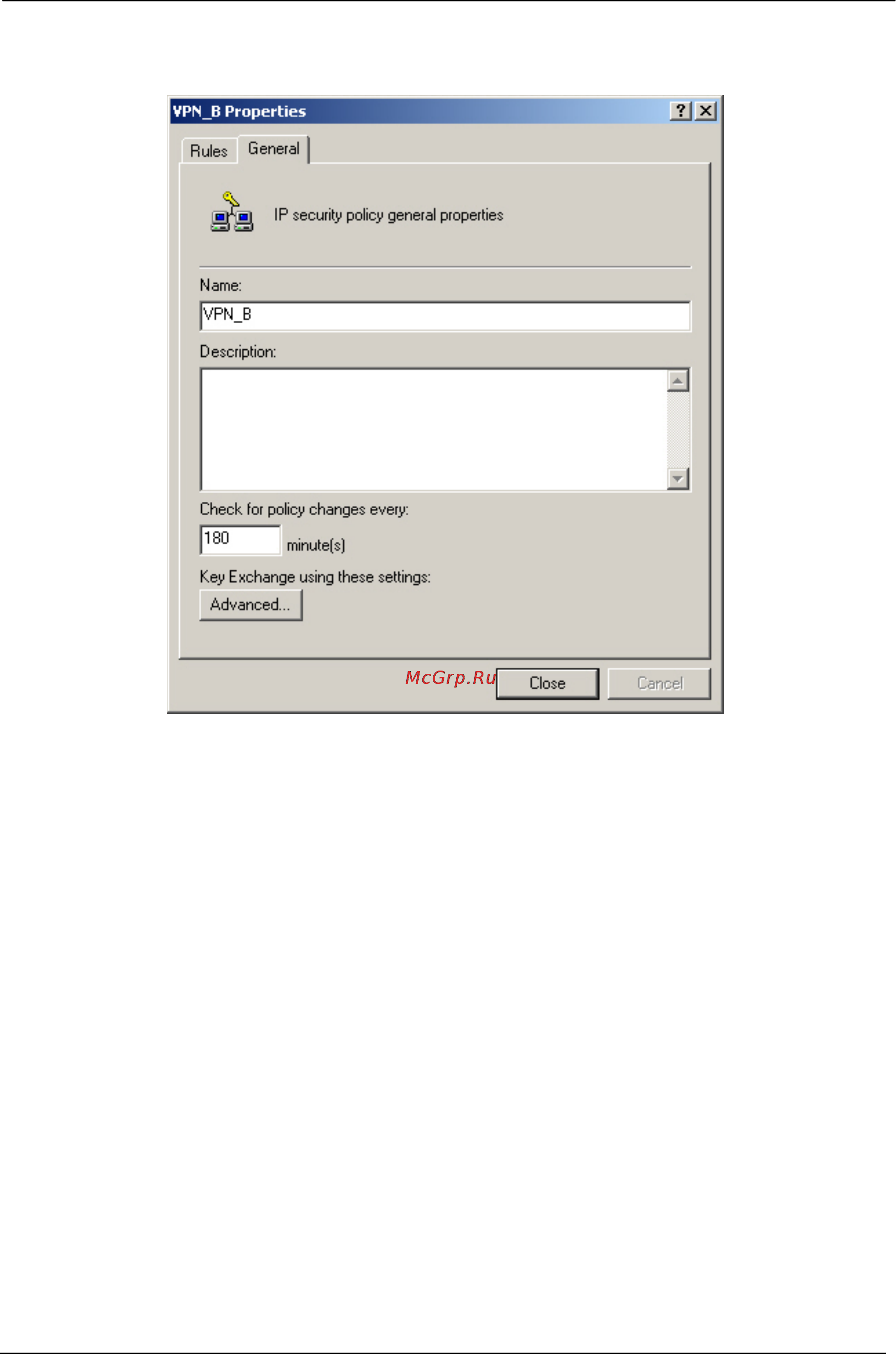

STEP 55 . In VPN_B Properties Æ General, click Advanced.
The VPN_B General setting
- 173 -
