MH-2001 Multi-Homing Security Gateway User’s Manual

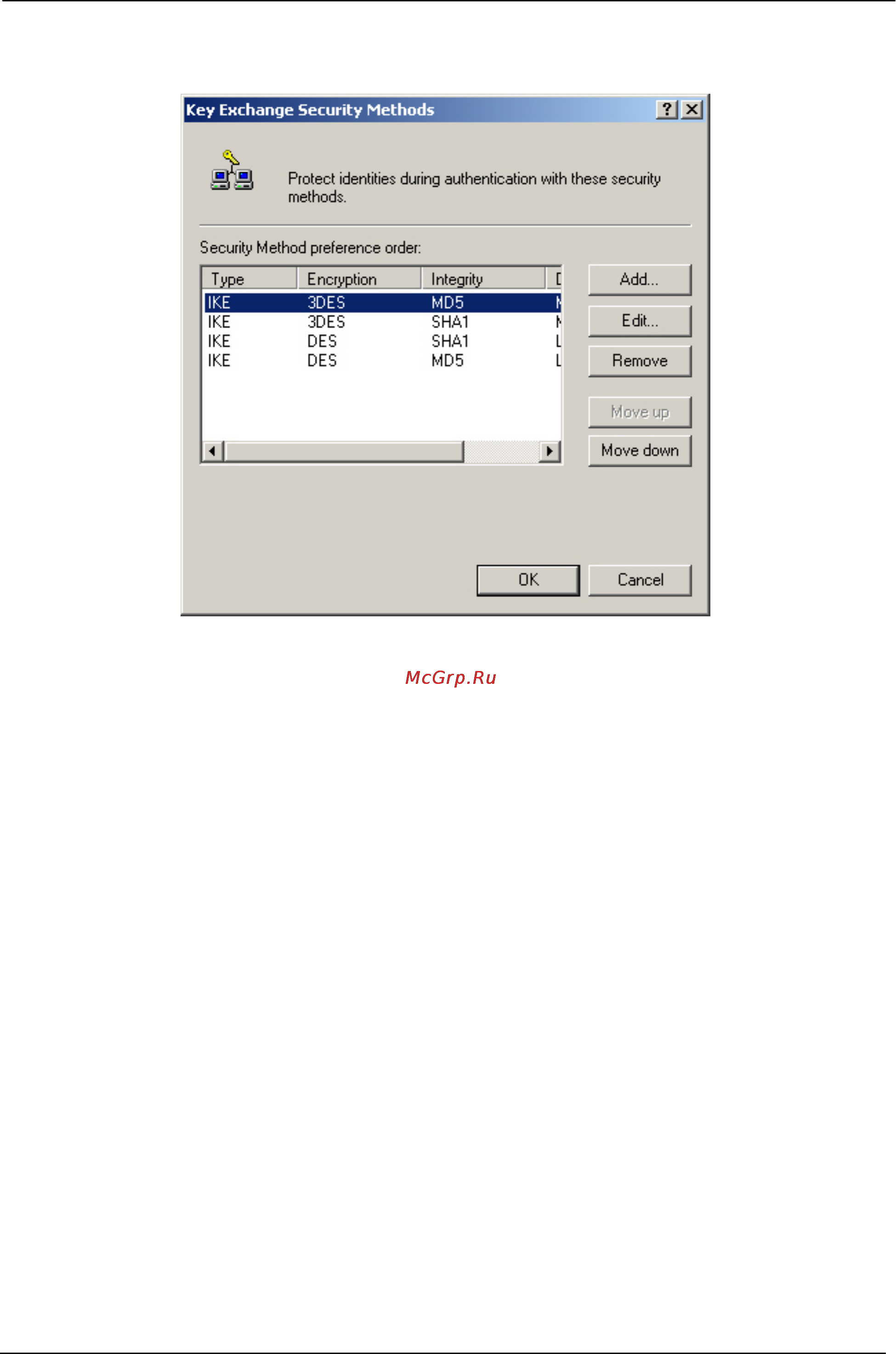

STEP 57 . Click Move up or Move down to arrange IKE / 3DES / MD5 / to the Top, and click OK.
To arrange the Security Methods
- 175 -
