MH-2001 Multi-Homing Security Gateway User’s Manual

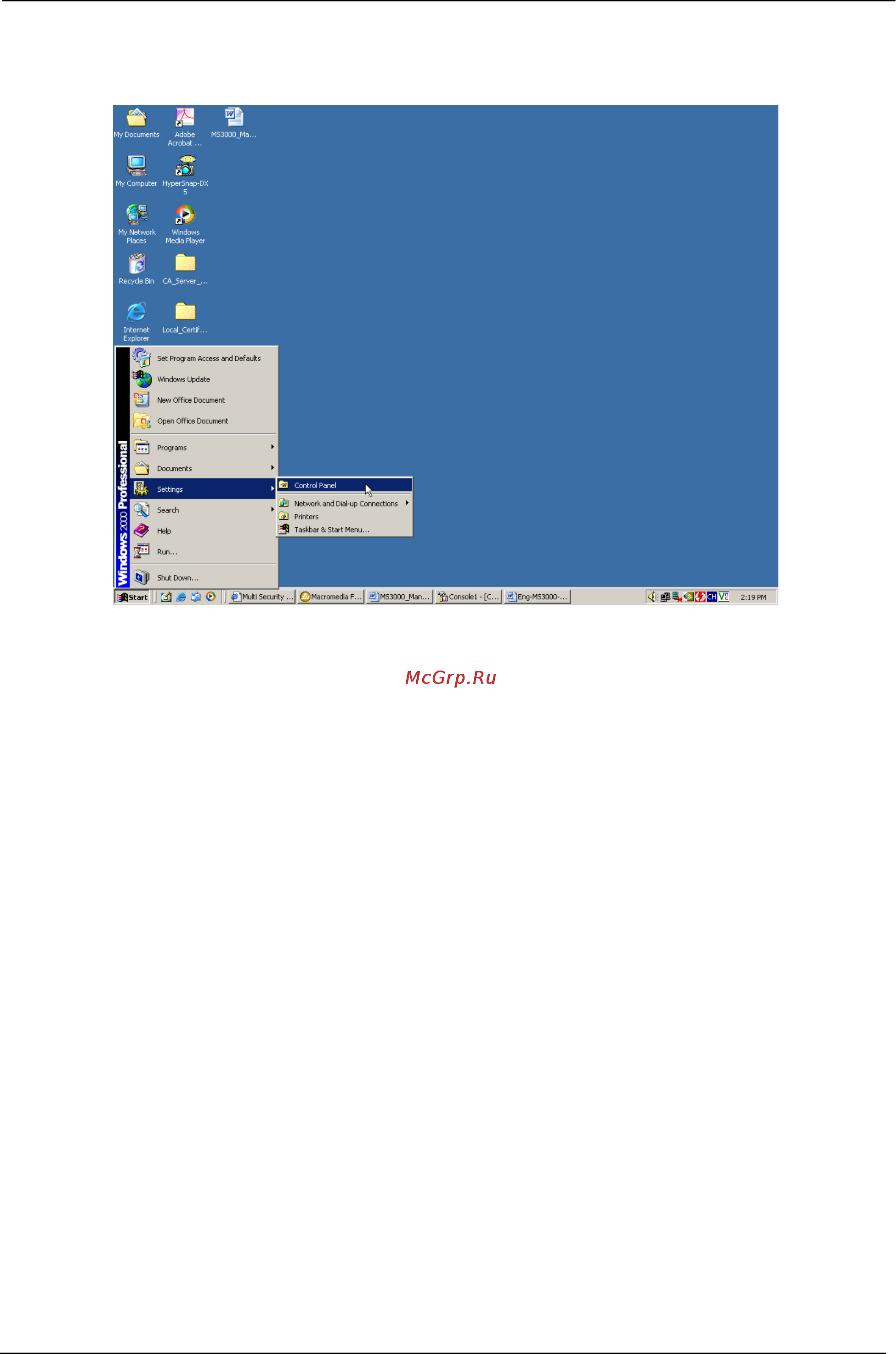

STEP 60 . We need to restart the IPsec Service. Click Start Æ Setting Æ Control Panel.
Enter the Control Panel
- 178 -
