MH-2001 Multi-Homing Security Gateway User’s Manual

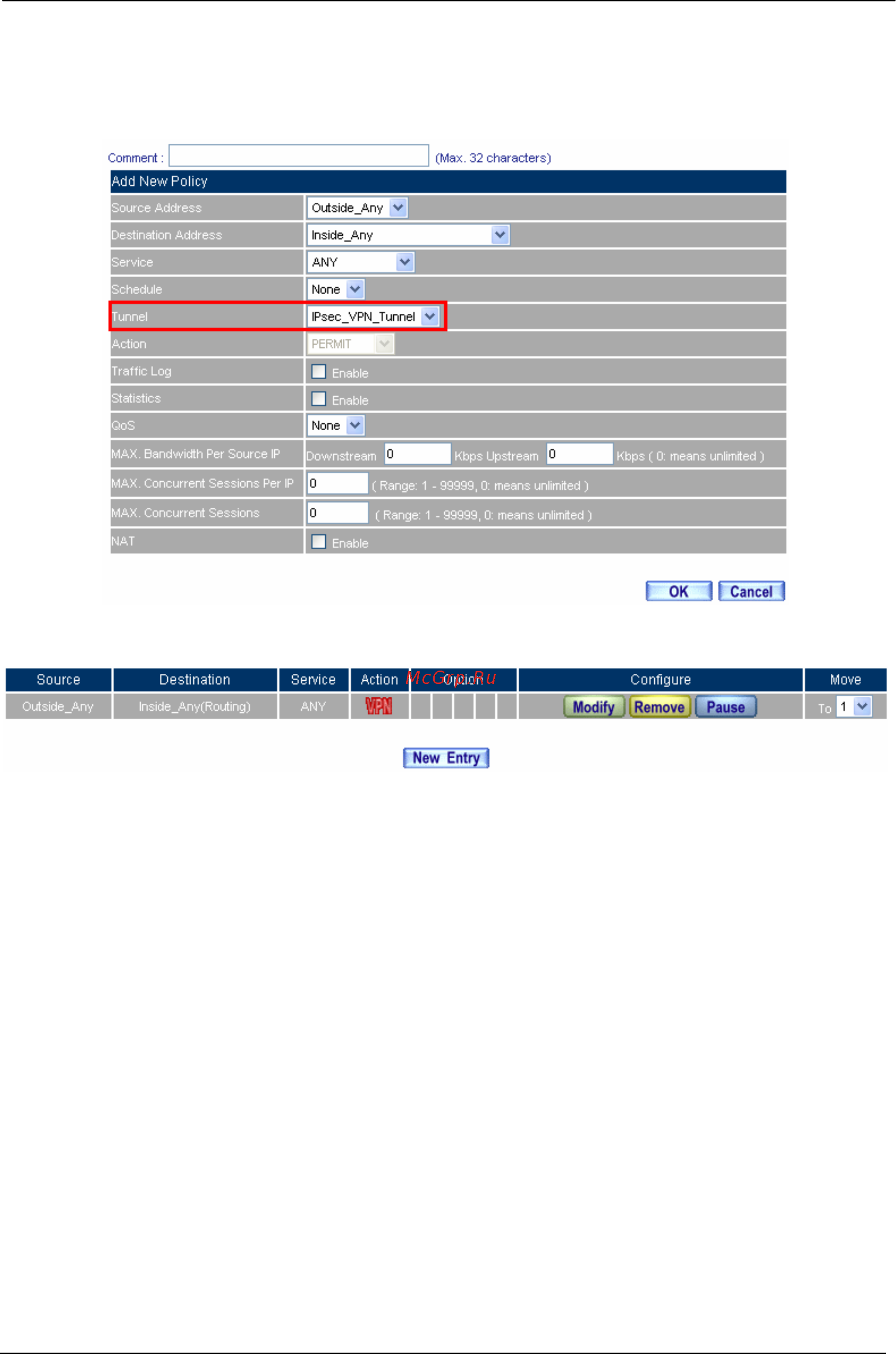

STEP 24 . In Policy Æ Incoming, add the following settings：
Tunnel, select IPSec_VPN_Tunnel.
Click OK.
Set the incoming policy included the VPN Tunnel
Complete the incoming policy setting included the VPN Tunnel
STEP 25 . Complete the IPSec VPN aggressive mode settings.
- 194 -
