MH-2001 Multi-Homing Security Gateway User’s Manual

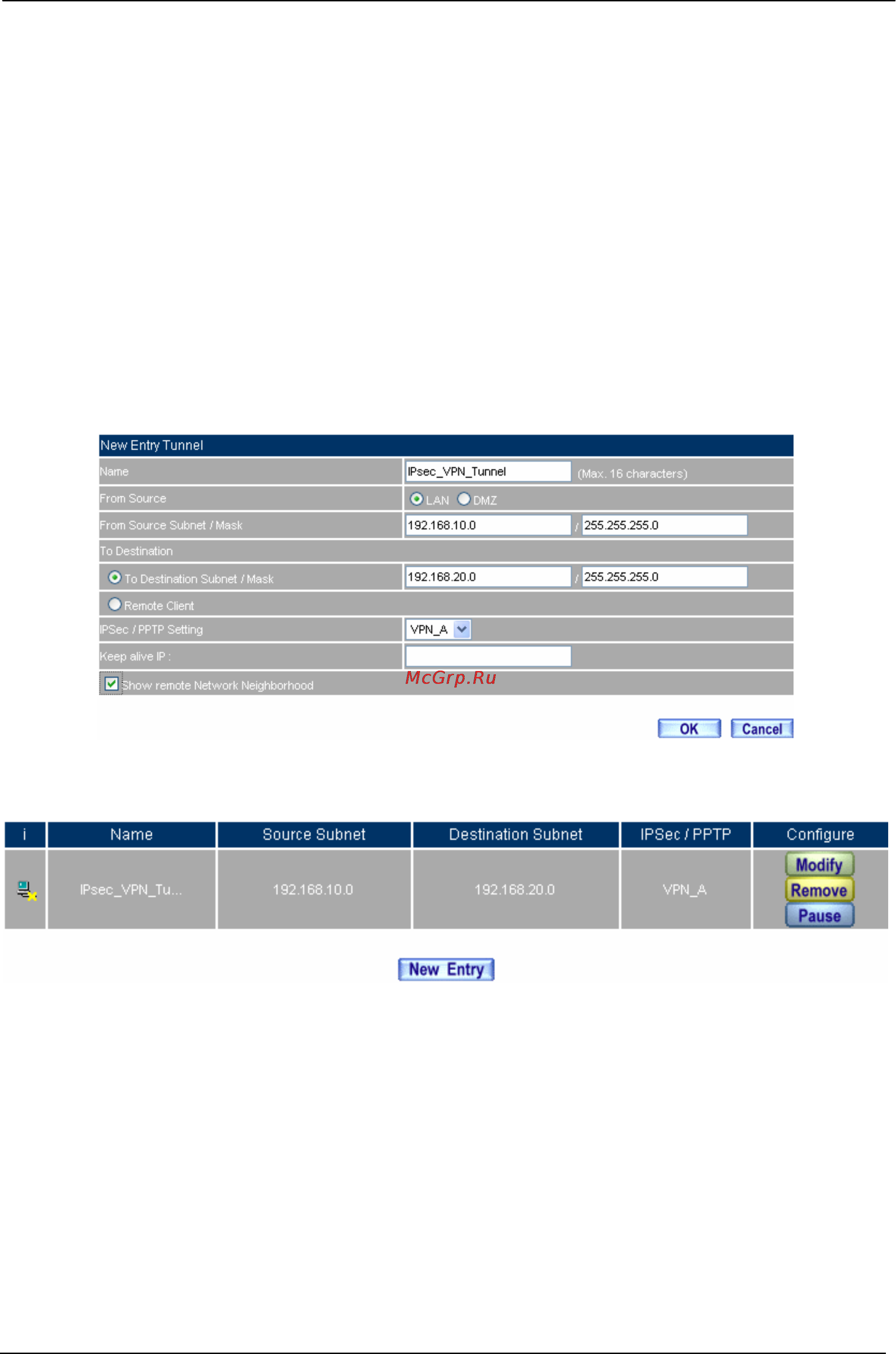

STEP 10 . In VPN Æ Tunnel , add the following settings：
Name, enter the Tunnel Name.
From Source, select LAN.
In From Source Subnet / Mask, enter the LAN source IP (A Company) 192.168.10.0 and
mask 255.255.255.0.
In To Destination, select To Destination Subnet / Mask.
In To Destination Subnet / Mask, enter the LAN IP address 192.168.20.0 (B Company)
and mask 255.255.255.0.
In IPSec / PPTP Setting, select VPN_A.
Select Show remoter Network Neighborhood.
Click OK.
To add the VPN Tunnel setting
Complete to add the VPN Tunnel setting
- 199 -
