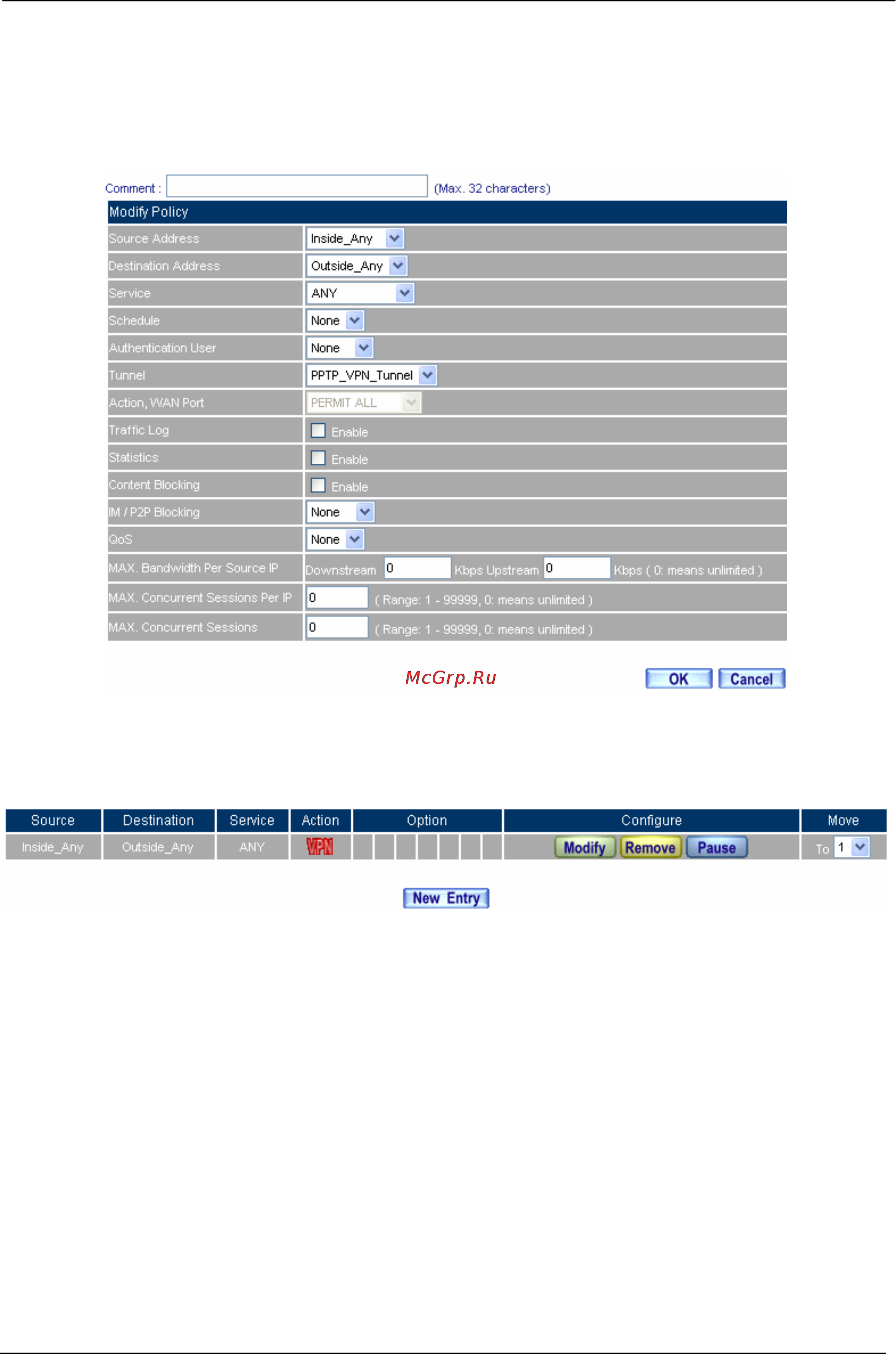

MH-2001 Multi-Homing Security Gateway User’s Manual
STEP 4 . Enter the following setting in Outgoing Policy:
Tunnel: Select PPTP_VPN_Tunnel.
Click OK.
Setting the VPN Tunnel Outgoing Policy
Complete the VPN Tunnel Outgoing Policy Setting
- 212 -
