MH-2001 Multi-Homing Security Gateway User’s Manual

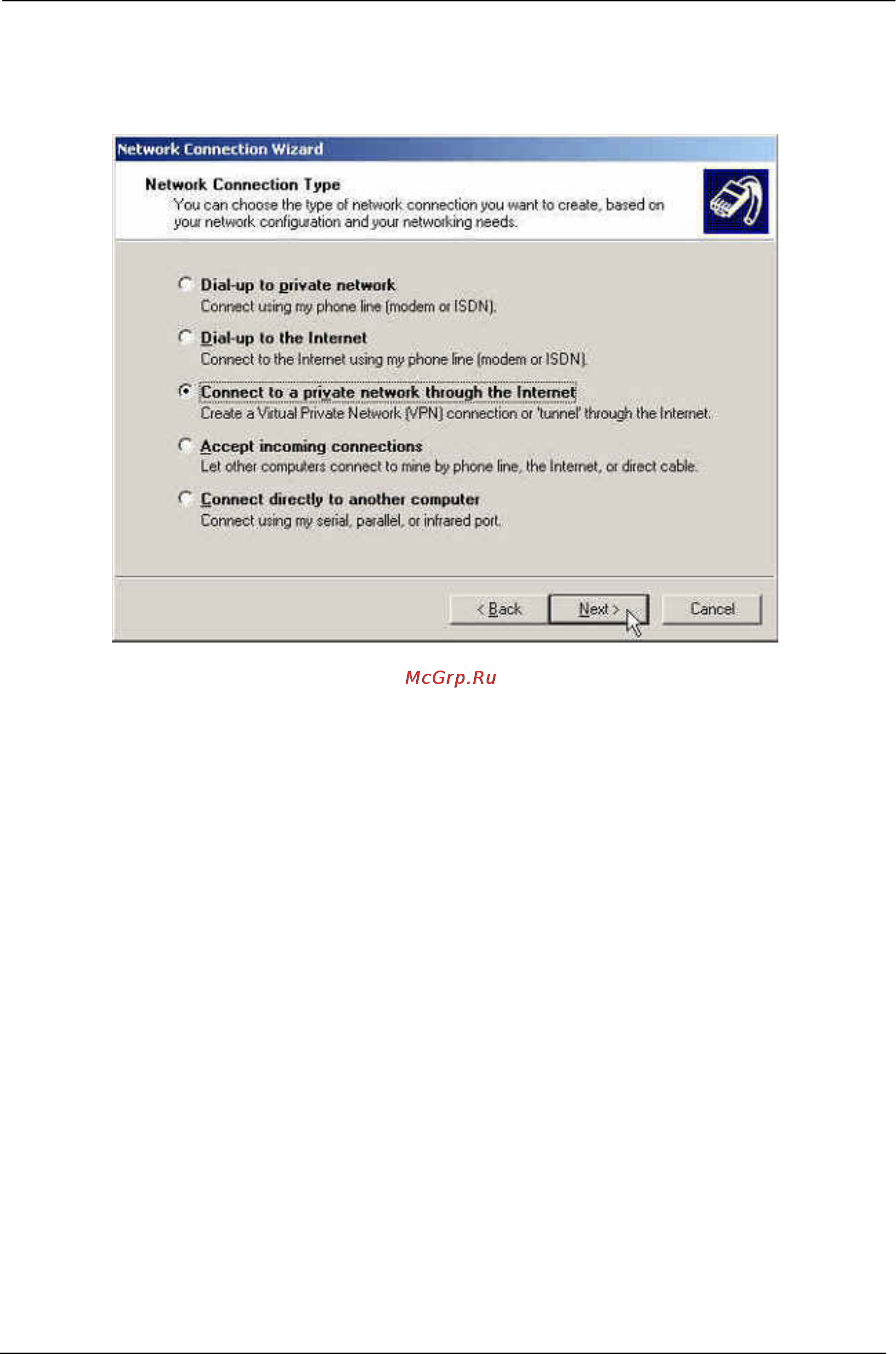

STEP 11 . In Network Connection Wizard, select Connect to a private network through the Network.
Click Next.
To Connect to a private network through the Internet
- 229 -
