MH-2001 Multi-Homing Security Gateway User’s Manual

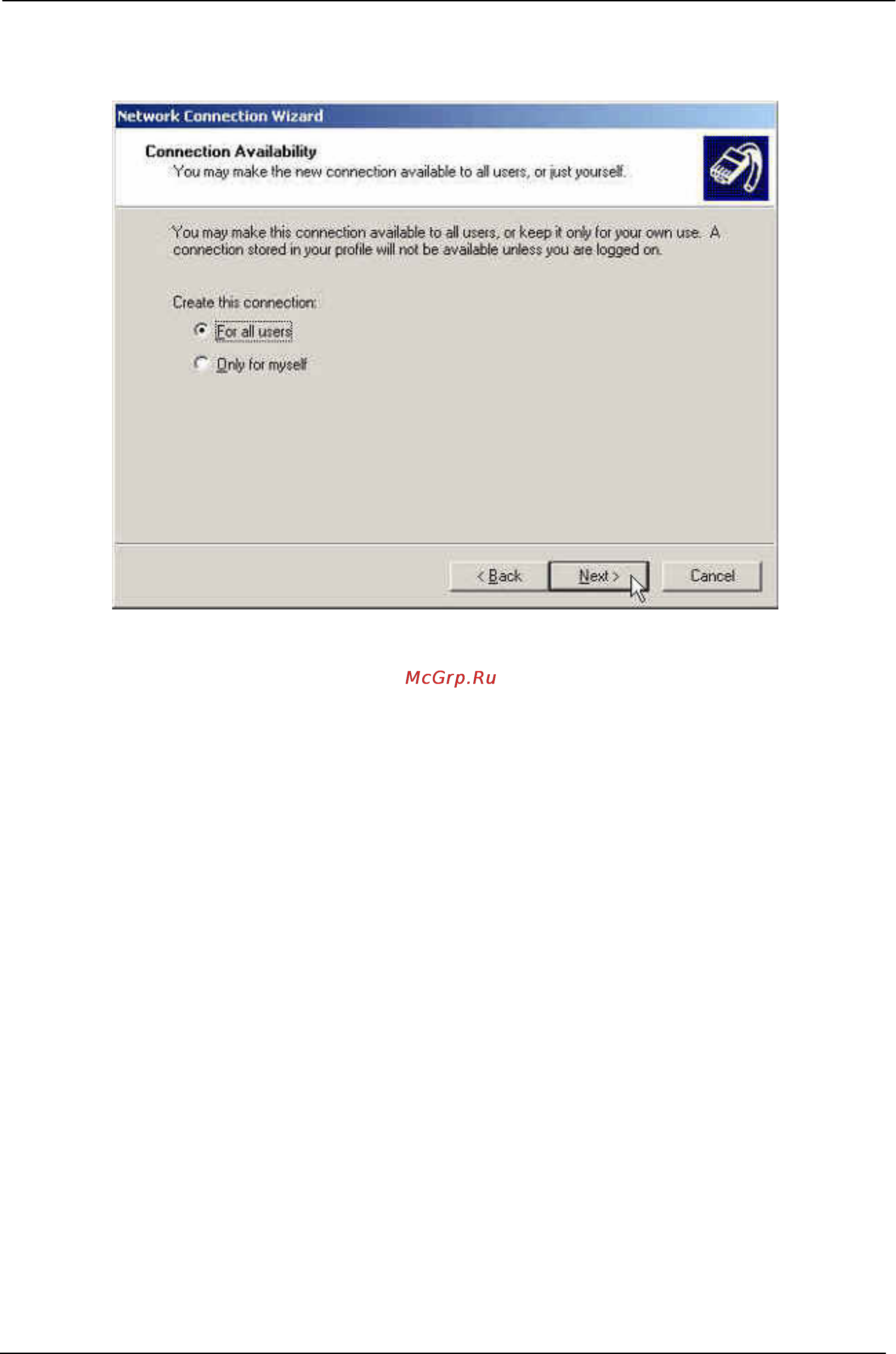

STEP 13 . In Network Connection Wizard Æ Connection Availability, select For all users. Click Next.
Setup the Connection Availability
- 231 -
