MH-2001 Multi-Homing Security Gateway User’s Manual

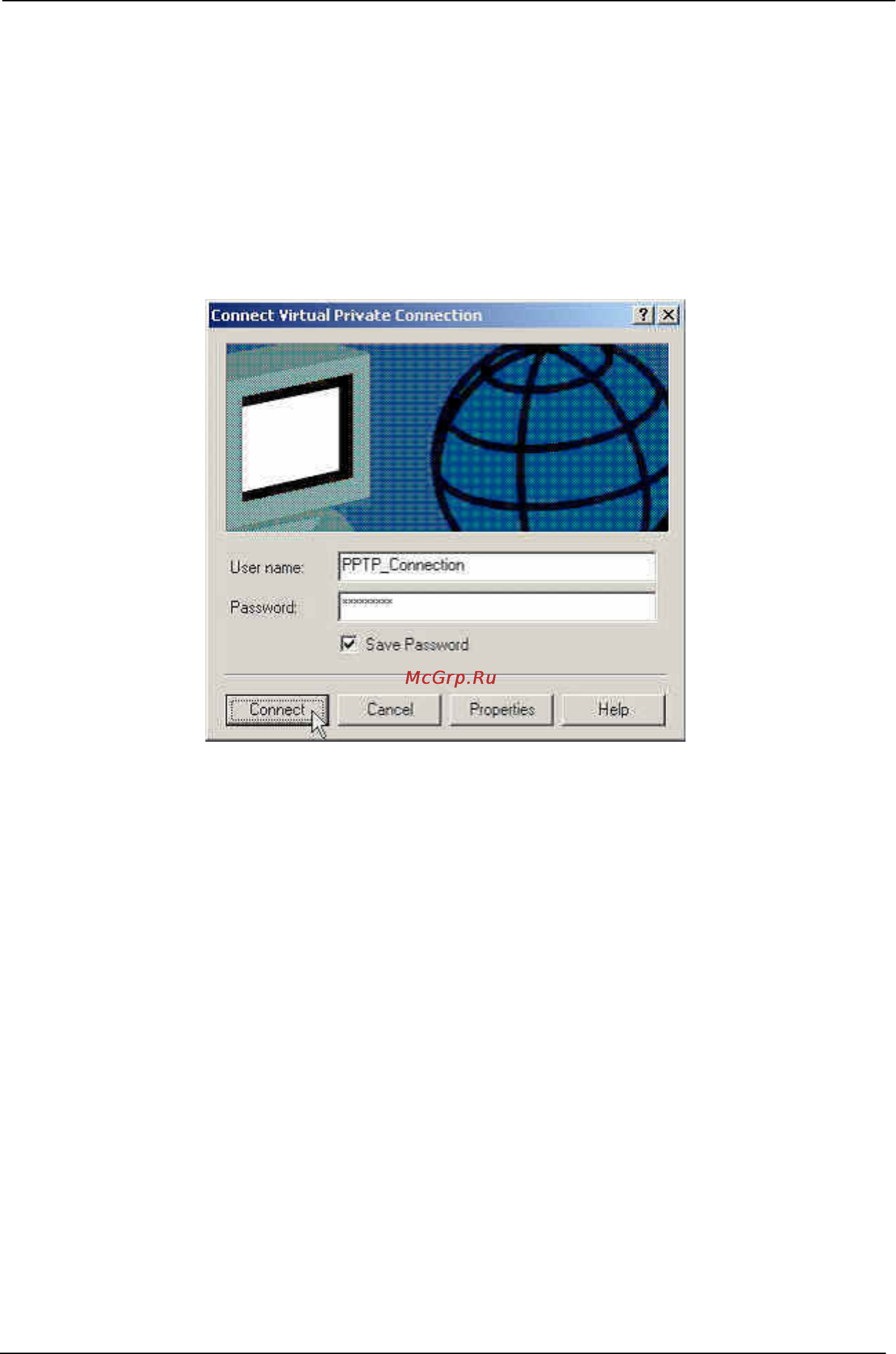

STEP 15 . In Connect Virtual Private Connection, add the following settings：
User Name, enter PPTP_Connection.
Password, enter 123456789.
Select Save Password.
Click Connect.
It shows Connecting to Virtual Private Connection window.
Connection Complete.
Connect Virtual Private Connection
- 233 -
