MH-2001 Multi-Homing Security Gateway User’s Manual
STEP 2﹒Go to Monitor / Log / Traffic menu, you can obtain the information of Traffic if you want to monitor
all the packets of the MH-2001.

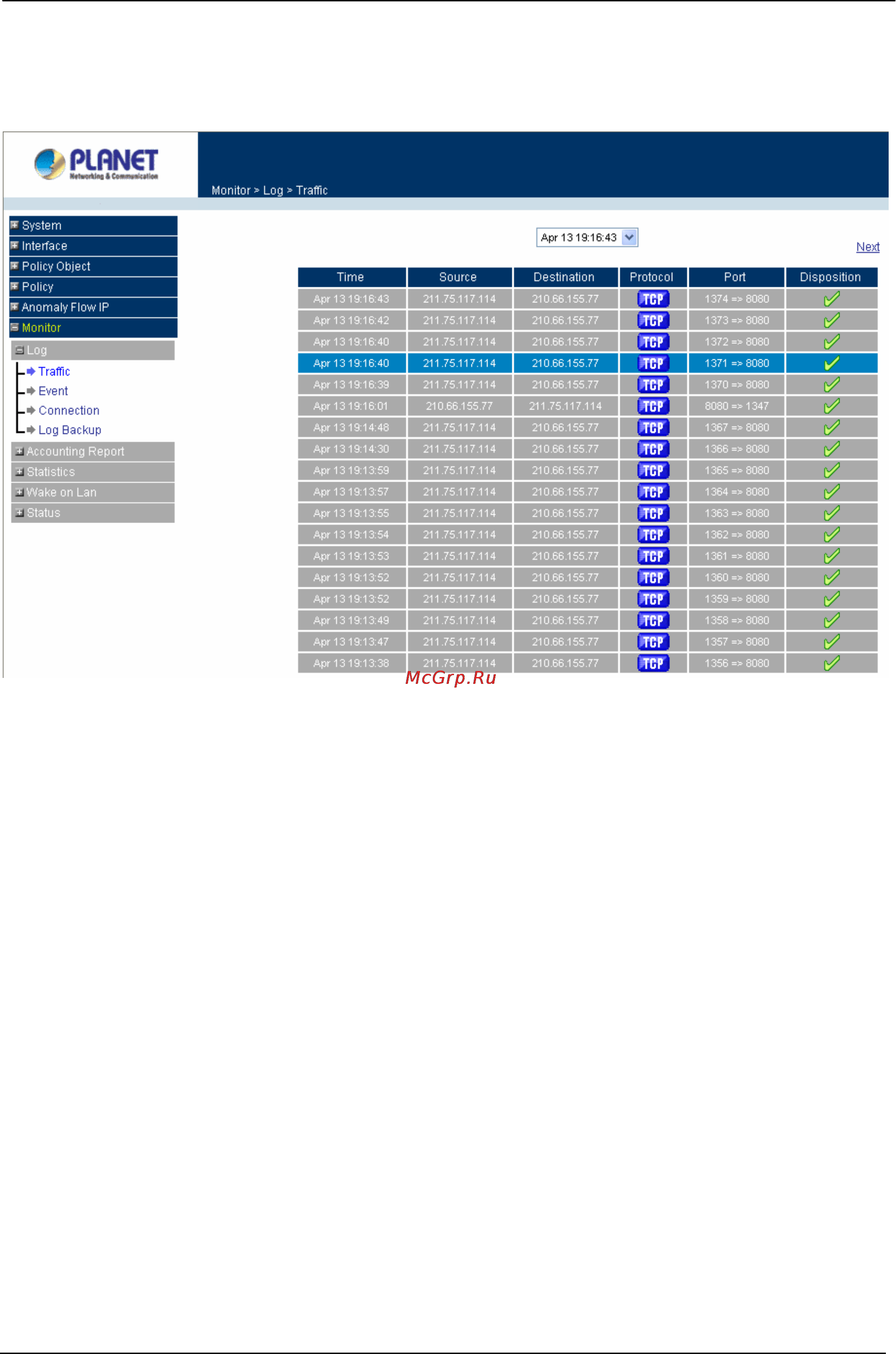

Traffic Log Monitor Web UI
- 241 -
