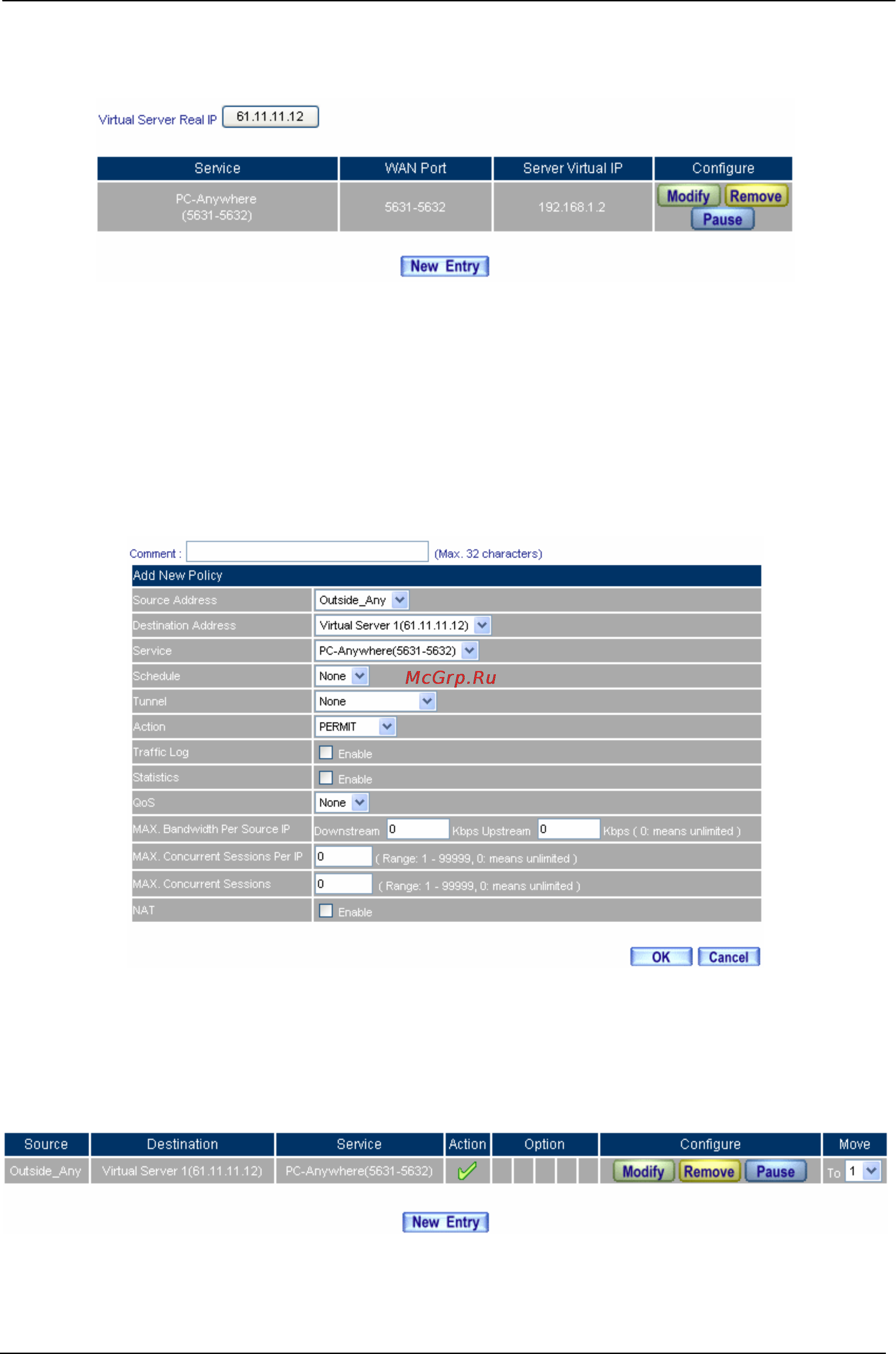

MH-2001 Multi-Homing Security Gateway User’s Manual
STEP 2﹒Enter the following setting in Virtual Server1 of Virtual Server function:
Setting Virtual Server
STEP 3﹒Enter the following in Incoming Policy:
Click New Entry
Destination Address: Select Virtual Server1
Service: Select PC-Anywhere (5631-5632)
Click OK
Setting the External User Control the Internal PC Policy
STEP 4﹒Complete the policy for the external user to control the internal PC through remote control software.
Complete Policy Setting
- 243 -
