MH-2001 Multi-Homing Security Gateway User’s Manual

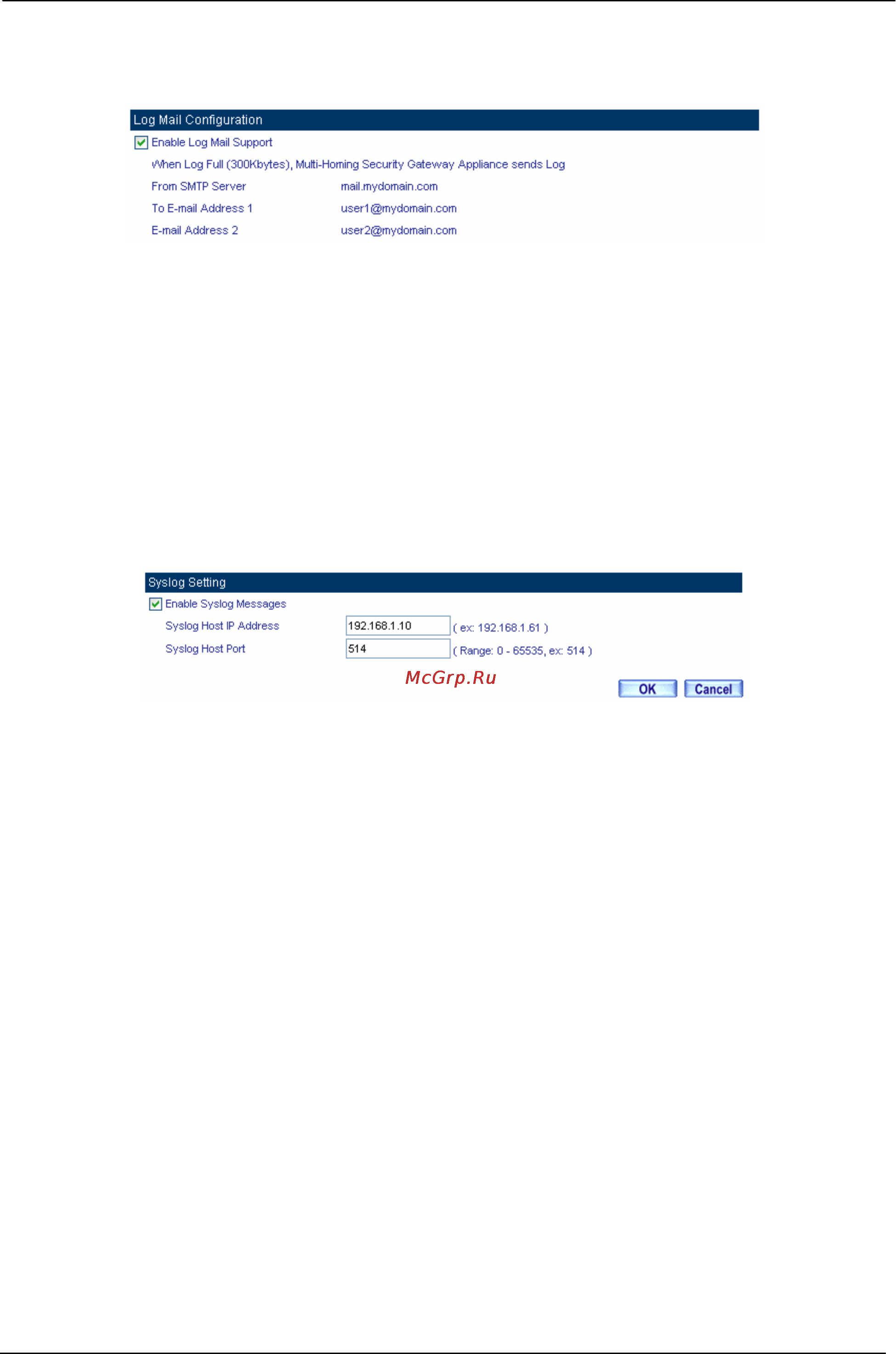

STEP 2 . Monitor Æ Backup Æ enable Log mail Configuration. Click OK.
Log mail configuration
STEP 3 . MonitorÆ Backup Æ Syslog setting :
Select Enable Syslog Messages.
Enter the IP in Syslog host IP address.
Enter the Syslog receive Prt number in Syslog host Port.
Click OK.
Complete the setting.
Syslog setting
- 269 -
