MH-2001 Multi-Homing Security Gateway User’s Manual

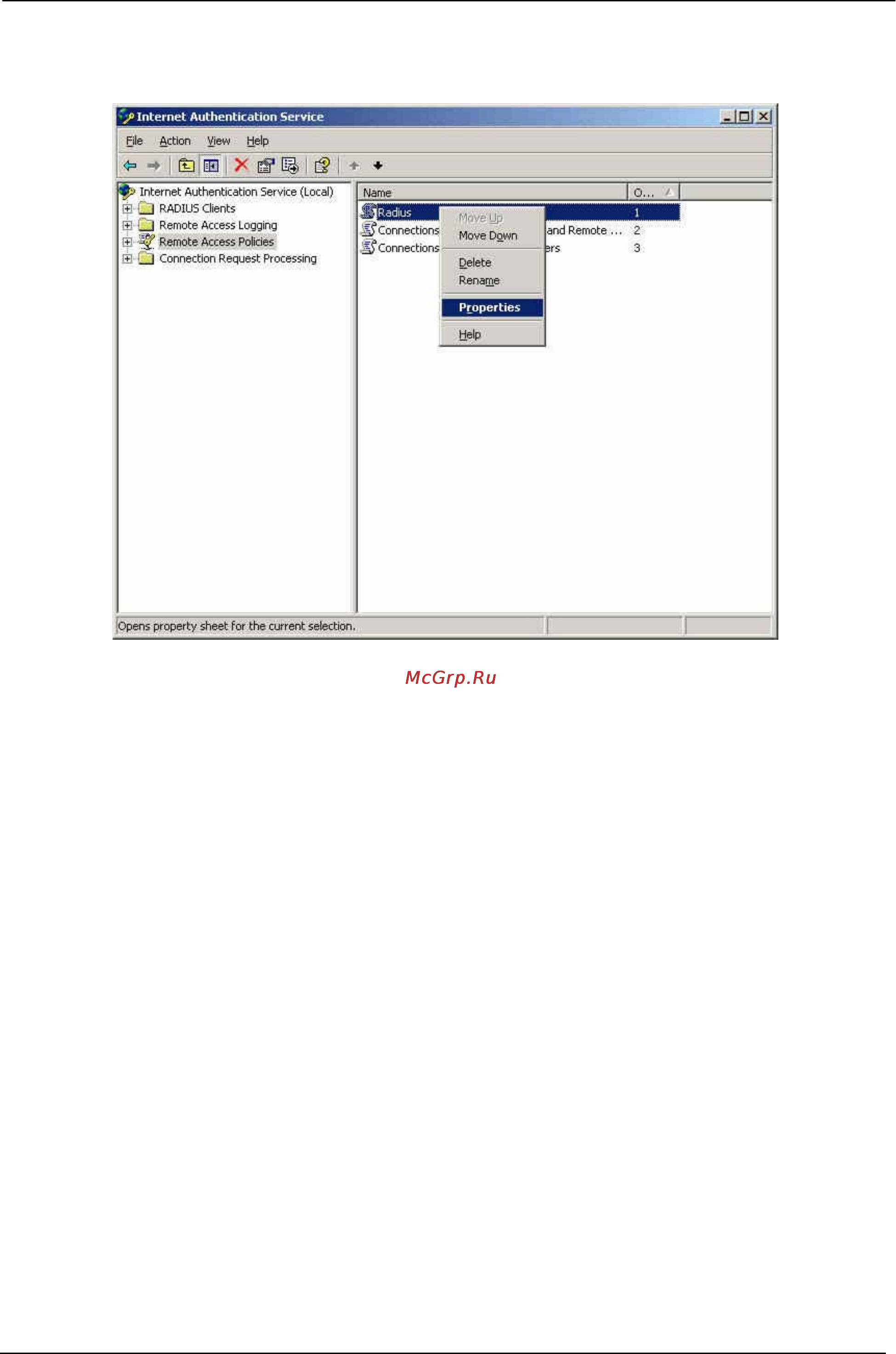

STEP 13 . Right click on the Radius Æ Properties.
The network authentication service setting
- 81 -
