Fitting nozzles
After determining the right nozzle to use, go ahead and fit them as follows:
1 Unscrew the screws “A”
2 Take off the casing “B”
3 Using a wrench, unscrew the coupling “C” by half a turn
4 Take the copper tube “D” out of the coupling
5 Slightly unscrew the screws “E”
6 Turn and take out the head/nozzle-holder assembly “F”
7 Remove the nozzle holder “G” from the combustion head “H”
8 Using a wrench, unscrew the nozzle “I”

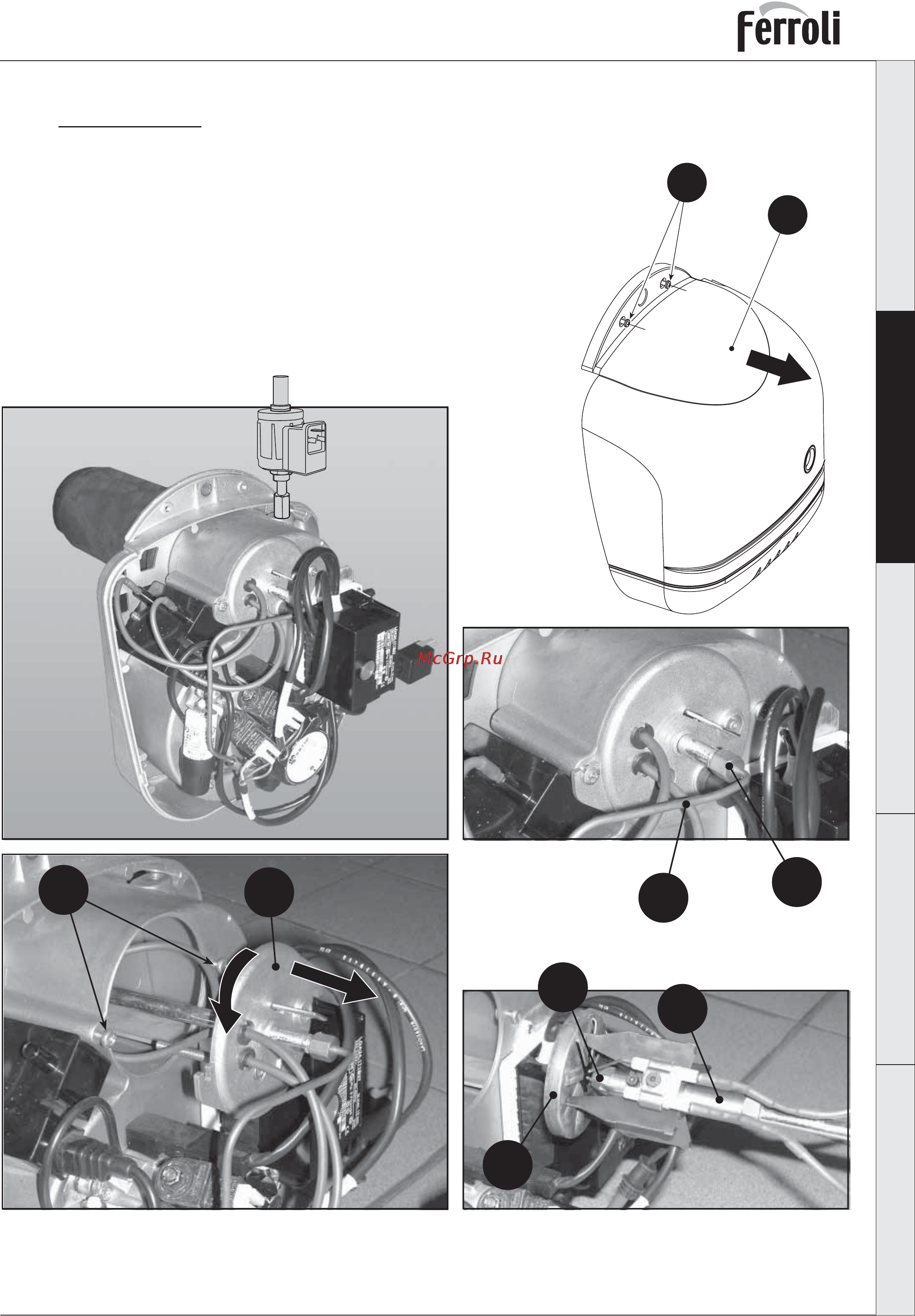

fig. 5
B
A
F
I
G
H
C
D
E
