SUN G10 2S
34
Cod. 35445523 - 02/2007 (Rev. 00)
4.4 Operating field
Power
Flow rate
Fuel
min.
1
st
stage
Density 0,82-0,85
Hi 11,86
kg/h 4 10
kW 47,5 118,6
Protection rating IP 40
V/Hz
Power Input W160
Motor W110
Electrical power supply 220-240V 50HZ
Operation
Intermittent
twin-stage
Burner SUN G10 2S
Diesel oil
Viscosity at 20°C 1,5° E
kWh/kg
kg/dm
3
min.
2
nd
stage
max.
2
nd
stage
5,3
63,2

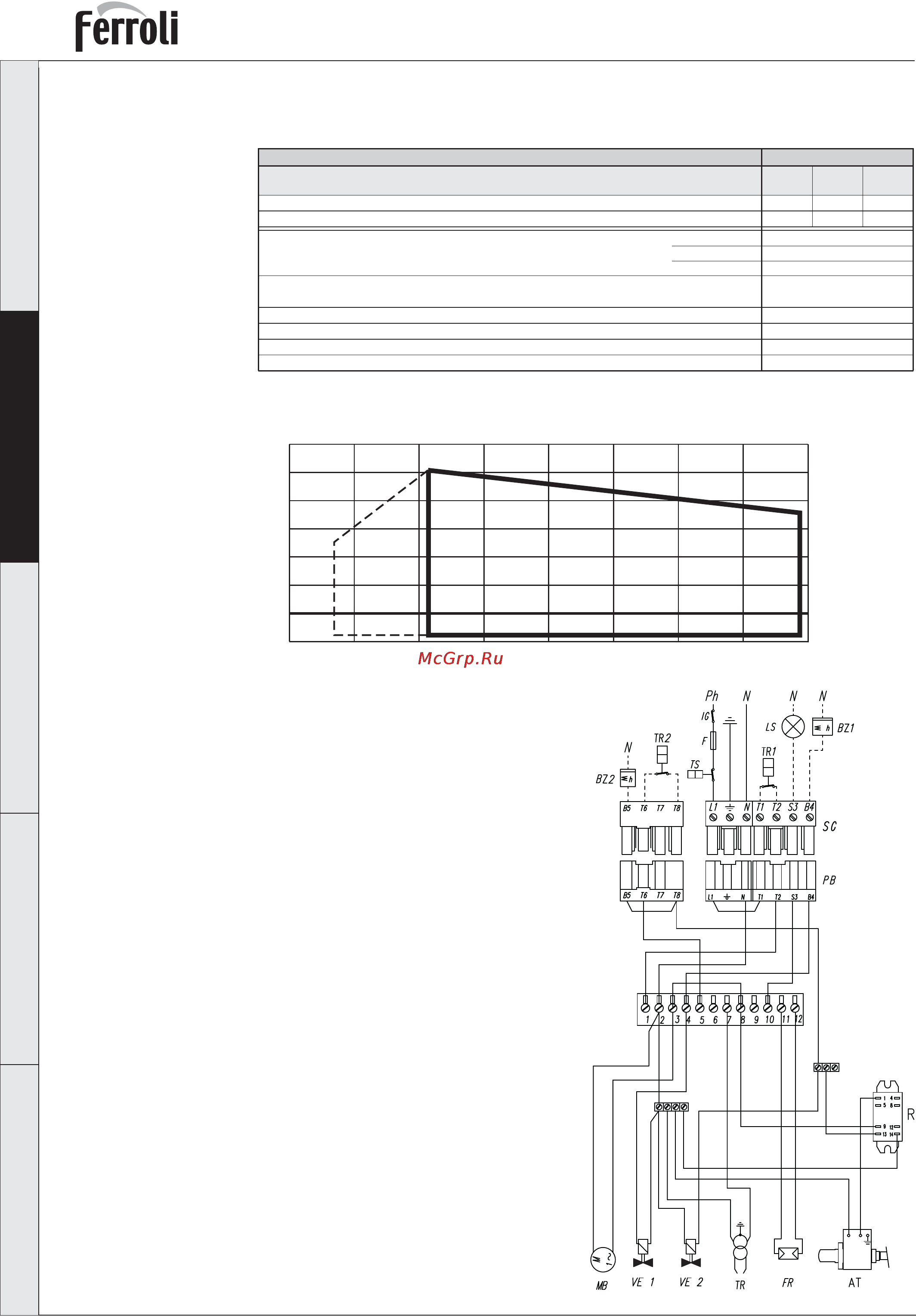

4.3 Table of technical specifications
4.5 Wiring diagram
fig. 14
Key
BZ1 1st-stage hour meter
BZ2 2nd-stage hour meter
F Fuse
FR Photo-cell
IG Main switch
LS Safety lamp
MB Burner motor
PB1 Burner socket
SC Plug
TR1 1st-stage boiler thermostat
TR Ignition transformer
TR2 2nd-stage thermostat
TS Safety thermostat
VE1 1st-stage electromagnetic valve
VE2 2nd-stage electromagnetic valve
R Relé
AT Air actuator
40.0 50.0 60.0 70.0 80.0 90.0 100.0 110.0 120.0
-0.2
0
0.2
0.4
0.6
0.8
1
1.2
Power (kW)
Pressure (mbar)
fig. 13
