SUN G10 2S
33
Cod. 35445523 - 02/2007 (Rev. 00)

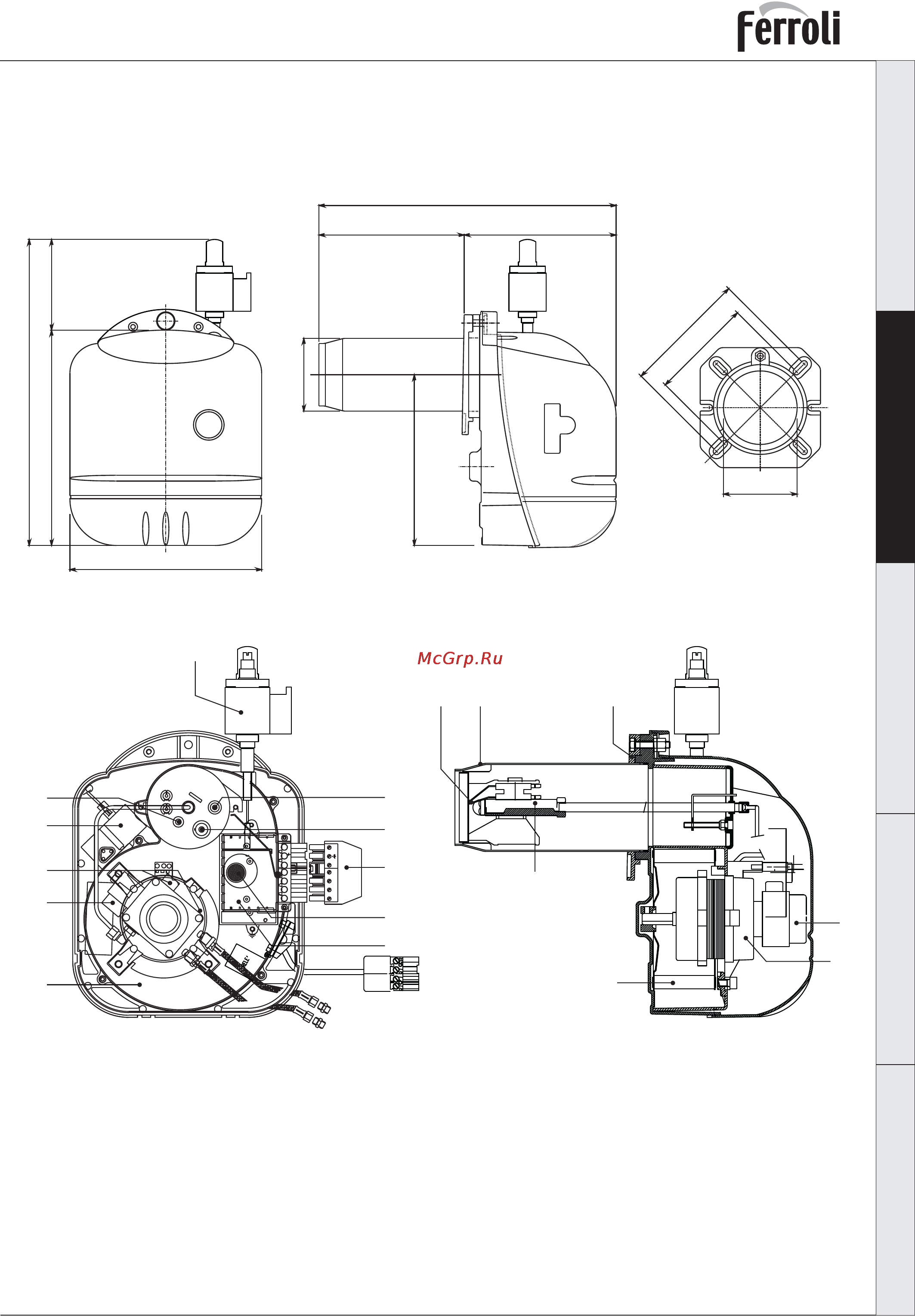

4. CHARACTERISTICS AND TECHNICAL SPECIFICATIONS
4.1 Dimensions
4.2 Overall view and main components
Key
1 Oil pump
2 Motor
3 Electromagnetic valve
4 Burner body
5 Reset button
6 Appliance
7 Photo cell
8 Ignition transformer
9 Burner attachment flange
10 Nozzle line
11 Ignition electrodes
12 Draught tube
13 Air regulation electrical actuator
14 Electrical connection plug
15 Fan
16 Combustion head adjustment
17 Pump pressure adjustment
18 Pressure test point
19 2° stage plug
fig. 11
fig. 12
Ø101
Ø 170
Ø 140
296
263
408
197 210
Ø100
421
125
238
13
18
7
14
5
6
3
4
8
16
17
19
91211
10
1
2
15
