Ferroli SUN G10 2S [29/37] Sun g10 2s
![Ferroli SUN G10 2S [29/37] Sun g10 2s](/views2/1072501/page29/bg1d.png)
Italiano English Français Deutsch Español
SUN G10 2S
29
Cod. 35445523 - 02/2007 (Rev. 00)
In particular, with single-tube systems, if the fuel inlet pipe is initially empty, the air contained
in the pipe must be vented for the fuel pump to be primed. It is recommended, before igniting
the burner, to loosen the pressure gauge connection screw on the pump and then perform the
ignition cycle.
When the oil comes out of the screw, the pump is primed. Switch off the burner and tighten the
screw.

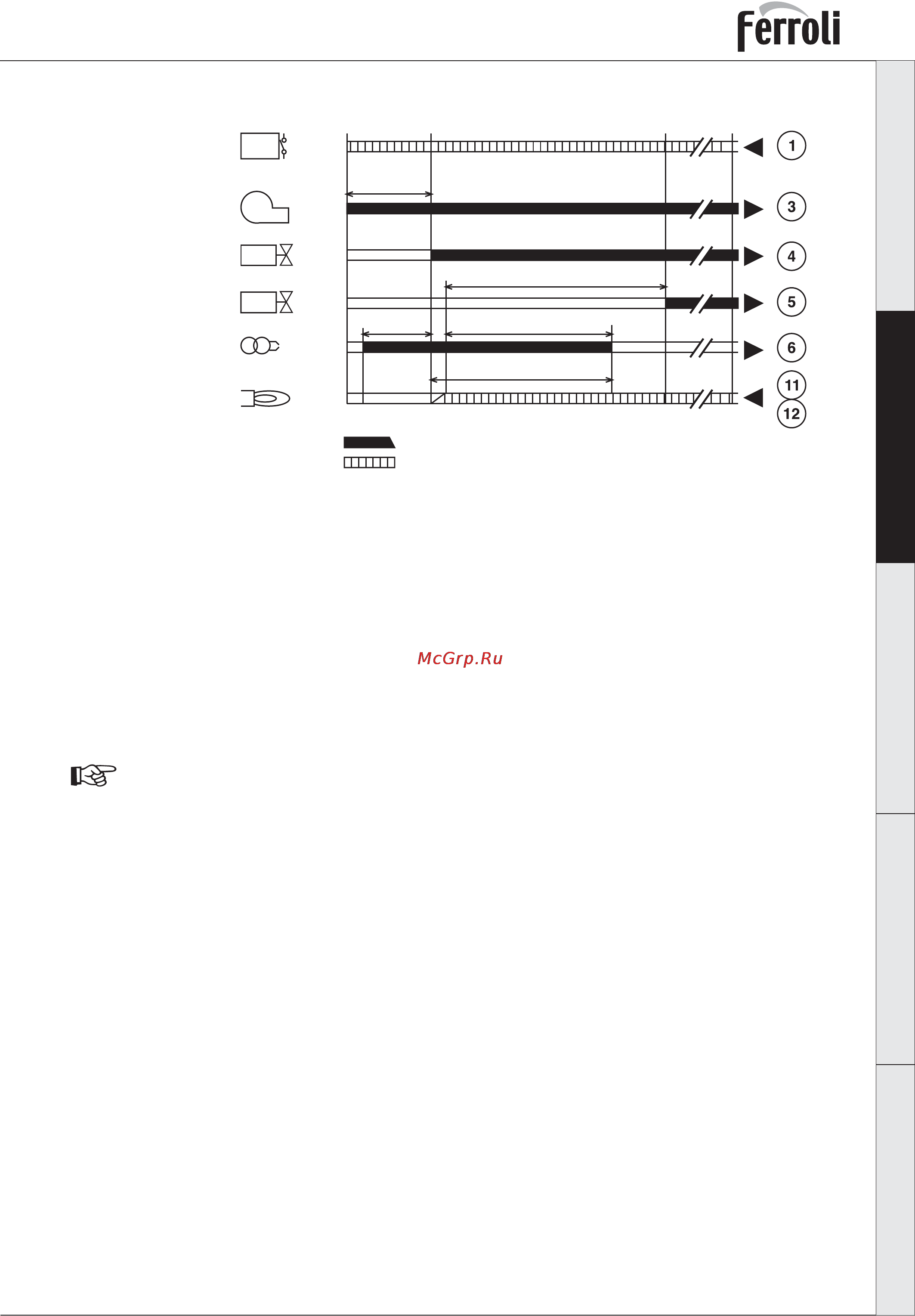

fig. 9
Key
A Start of commissioning for burners with no pre-heater
B Flame ignition time
C Operation
D Stop for R adjustment
t1 Pre-ventilation time
t3 Pre-ignition time
t3n Time after ignition
t4 Interval between flame signal and BV2 supply
TSA Safety time on starting
R
W
SB
M
BV1
BV2
Z
FS
AB CD
t1
t3
t4
t3n
TSA
Thermostats
motor
1st-stage
solenoid valve
2nd-stage
solenoid valve
Ignition
transformer
Photo-cell
Output signal
Input signal request
