Positioning the electrodes

After having fitted the nozzle, check the correct positioning of the electrodes and the baffle, according

to the distances shown below.

The distances should be checked after any operations performed on the head.

2.5 Electrical connections

The burner is fitted with a multi-pole socket for the electrical connections; refer to the wiring diagram in

Chapter “4 Characteristics and technical specifications” for the connections. The following connections

are to be performed by the installer:

• power line

• thermostat line

• any shut-down and/or hour counter lights

The length of the connection cables must allow the burner, and the boiler door, if required, to be ope-

ned. In the event of faults involving the burner power cable, it should only be replaced by specialist

persons.

The burner should be connected to a single-phase, 230 Volt-50 Hz electrical line.

Have professionally qualified personnel check the efficiency and the suitability of the earth

system; the manufacturer is not responsible for any damage caused by the failure to earth

the system. Also check that the electrical system is adequately rated for the maximum power

absorbed by the appliance, indicated on the boiler rating plate.

The correct polarity must be respected (PHASE: brown wire / NEUTRAL: blue wire / EARTH:

yellow - green wire) in the electrical connections.

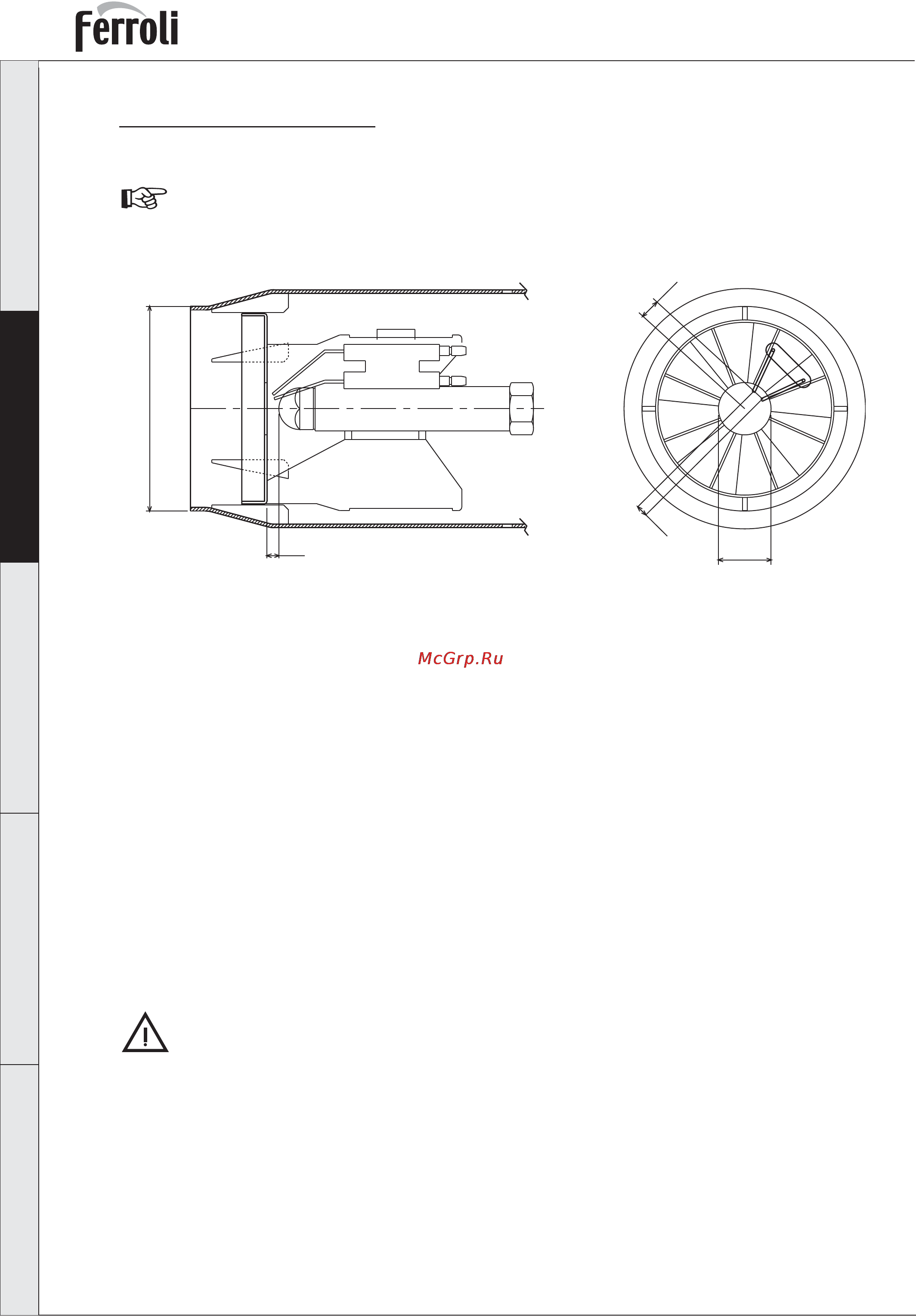

Ø80

Ø22

6,5

3,5

fig. 6
