Chapter 4: Main TabAirRouter
HP User Guide
Ubiquiti Networks, Inc.
CCQ, % This is an index that evaluates the wireless Client
Connection Quality (CCQ). The level is a percentage value
where 100% corresponds to a perfect link state.
Connection Time Displays the connection time of
each station connected to the AirRouter HP. The time is
expressed in days, hours, minutes and seconds.
Last IP Displays the station’s IP address.
Action Shows available options for this station, e.g.:
kicking a station for a few seconds to identify any
problematic stations.
Refresh The information in the station statistics window
can be updated using the Refresh button.

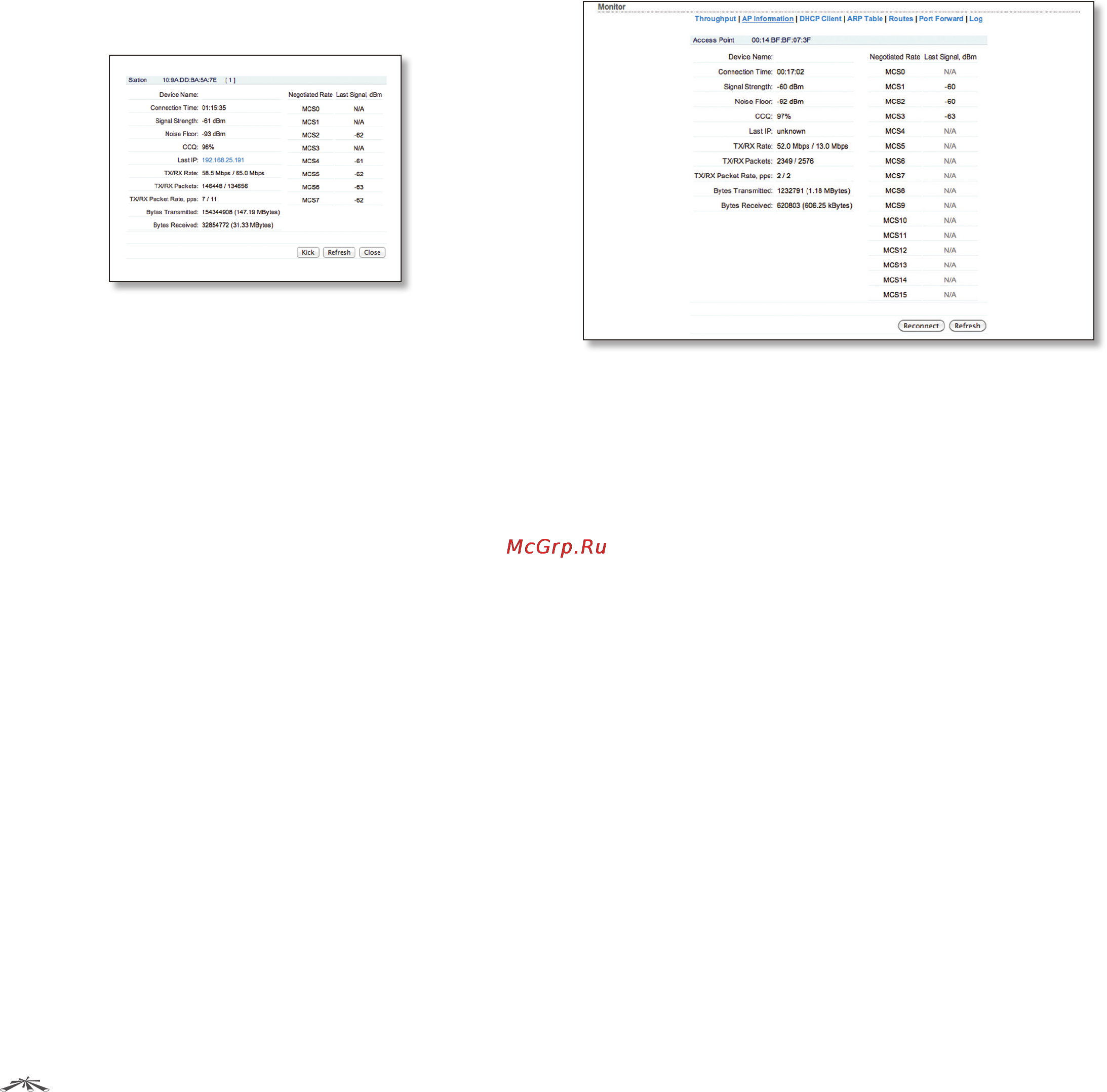

Station Info
Detailed information is displayed when you click on a
specific MAC address:
Device Name Displays the client’s host name.
Connection time Displays the amount of time the station
has been connected to the AirRouter HP. The time is
expressed in days, hours, minutes and seconds.
Signal Strength Value represents, in dBm, the last
received wireless signal level.
Noise Floor Displays the current value of the noise level
in dBm. Noise Floor is taken into account while evaluating
the signal quality (Signal-to-Noise Ratio SNR, RSSI) while
value mean depends on signal strength above the noise
floor.
CCQ Value represents the quality of the connection to the
Station.
Last IP Displays the last station’s IP address.
TX/RX Rate Represents the data rates, in Mbps, of the last
transmitted and received packets;
TX/RX Packets Value represents the total amount of
packets transmitted and received from the Station during
the connection uptime.
TX/RX Packet Rate, pps Represents the mean value of
the transmitted and received packet rate.
Bytes Transmitted Value represents the total amount of
data (in bytes) transmitted during the connection.
Bytes Received Value represents the total amount of data
(in bytes) received during the connection.
Negotiated Rate/Last Signal (dBm) Table The values
represent the received wireless signal level along with
the all data rates of recently received packets. N/A value is
represented as the Last Signal if no packets were received
on that particular data rate.
Kick The connection to the station can be dropped by
clicking Kick.
Refresh The list can be updated by clicking Refresh.
Close The Station Info window can be closed by clicking
Close.
AP Information
Available only when operating in Station or Station WDS
mode.
• Access Point Shows the MAC address of the Access
Point the station is associated with.
• Device Name Displays the host name of the Access
Point the station is associated with.
•
Connection time Value represents the running total
of time the AirRouter HP has been associated with
the Access Point. The time is expressed in days, hours,
minutes and seconds.
• Signal Strength Value represents the last received
wireless signal level.
• Noise Floor Displays the current value of the noise
level in dBm. Noise Floor is taken into account while
evaluating the signal quality (Signal-to-Noise Ratio SNR,
RSSI) while value mean depends on signal strength
above the noise floor.
•
CCQ Value represents the quality of the connection to
the Access Point.
•
Tx/Rx Rate Represents the data rates of the last
transmitted and received packets.
•
Tx/Rx Packets Displays the total number of packets
transmitted and received during the connection.
•
Tx/Rx Packet Rate (packets per second) Represents
the mean value of the transmitted and received packet
rate.
