21
Chapter 6: Network TabAirRouter
HP User Guide
Ubiquiti Networks, Inc.
Comment Field used to enter a brief description of the
firewall entry.
On Enables or disables the effect of the particular firewall
entry. All added firewall entries are saved in system
configuration file, however only the enabled firewall
entries will be active on the AirRouter HP.
Not Can be used for inverting the Source IP/mask, Source
Port, Destination IP/mask and Destination Port filtering
criteria (i.e. if not is enabled for the specified Destination
Port value 443, the filtering criteria will be applied to all
the packets sent to any Destination Port except the 443
which is commonly used by HTTPS).
Click Save to save your firewall entries or click Cancel to
discard your changes.
All active firewall entries are stored in the FIREWALL chain
of the ebtables filter table, while the device is operating
in Bridge mode. Please refer to the ebtables manual for a
detailed description of the firewall functionality in Bridge
mode.
Click Change to save the changes made in the Network
tab.

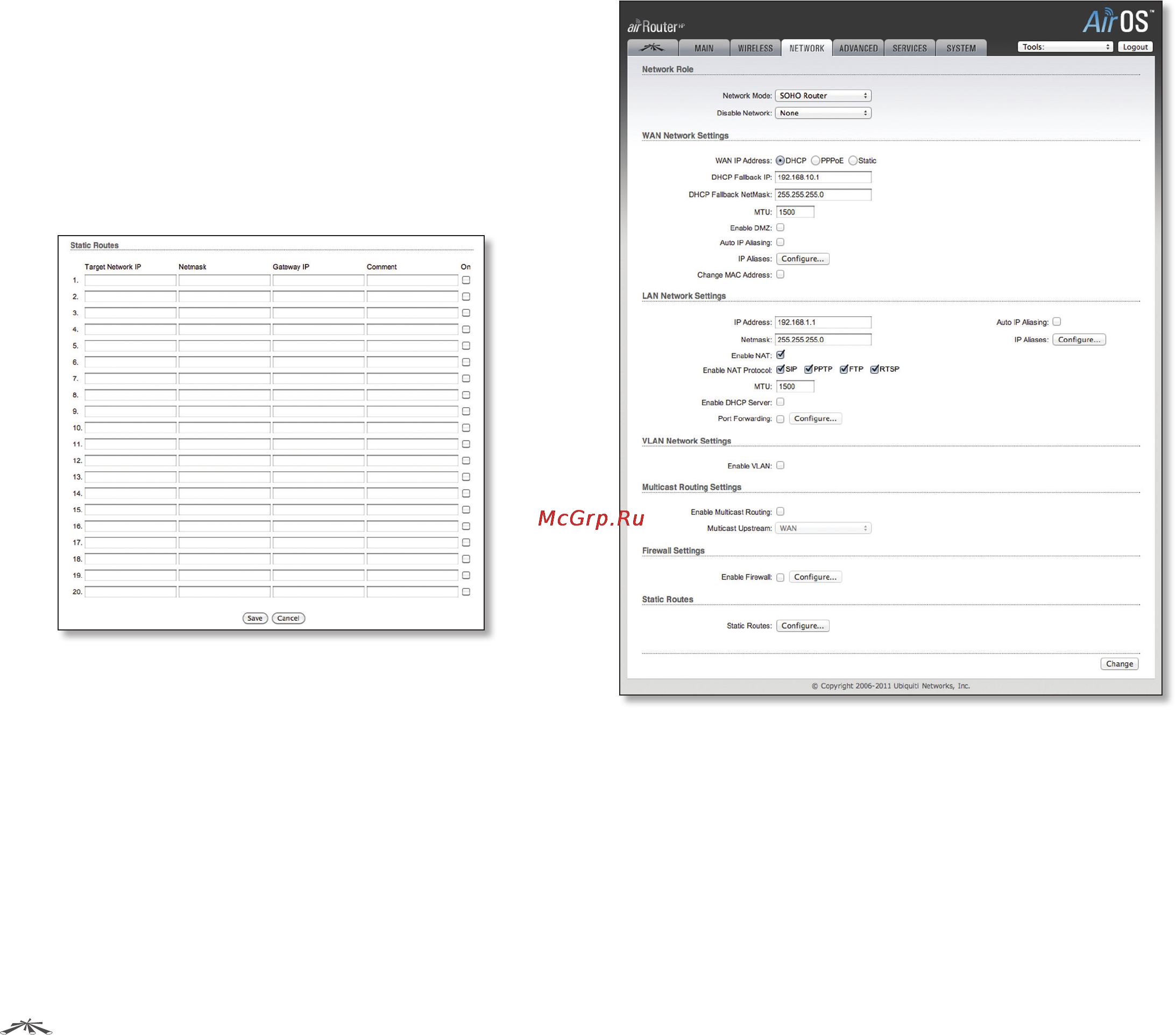

Bridge > Static Routes
In this section you can manually add static routing rules to
the System Routing Table, this allows you to specify that a
specific target IP address (es) passes through a determined
gateway. Click Configure to add an entry.
For each entry you must specify a valid Target Network IP,
Netmask, Gateway IP, and optionally a comment. Select
On to enable the rule. Click Save to save your entries or
Cancel to discard them.
Router
The role of the LAN and WLAN interface will change
depending on the Wireless Mode selected while the
AirRouter HP is operating in Router mode:
• The wireless interface and all connected wireless clients
are considered as part of the internal LAN and the
Ethernet interface is dedicated for the connection to the
external network while the AirRouter HP is operating in
Access Point or Access Point WDS mode.
• The wireless interface and all of the connected wireless
clients are considered part of the external network
and all network devices on the LAN side as well as the
Ethernet interface itself are considered as part of the
internal network when the AirRouter HP is operating in
Station or Station WDS mode.
Wireless/wired clients are routed from the internal
network to the external one by default. Network Address
Translation (NAT) functionality works the same way.
Router > WLAN Network Settings
IP Address This is the IP address to be represented by
the WLAN interface which is connected to the internal
network according to the wireless operation mode
described above. This IP will be used for the routing of
the internal network (it will be the Gateway IP for all
the devices connected on the internal network). This IP
address can be used to access the management interface
of the AirRouter HP.
