Chapter 2: InstallationAirRouter
HP User Guide
Ubiquiti Networks, Inc.
Chapter 2: Installation
Hardware Installation

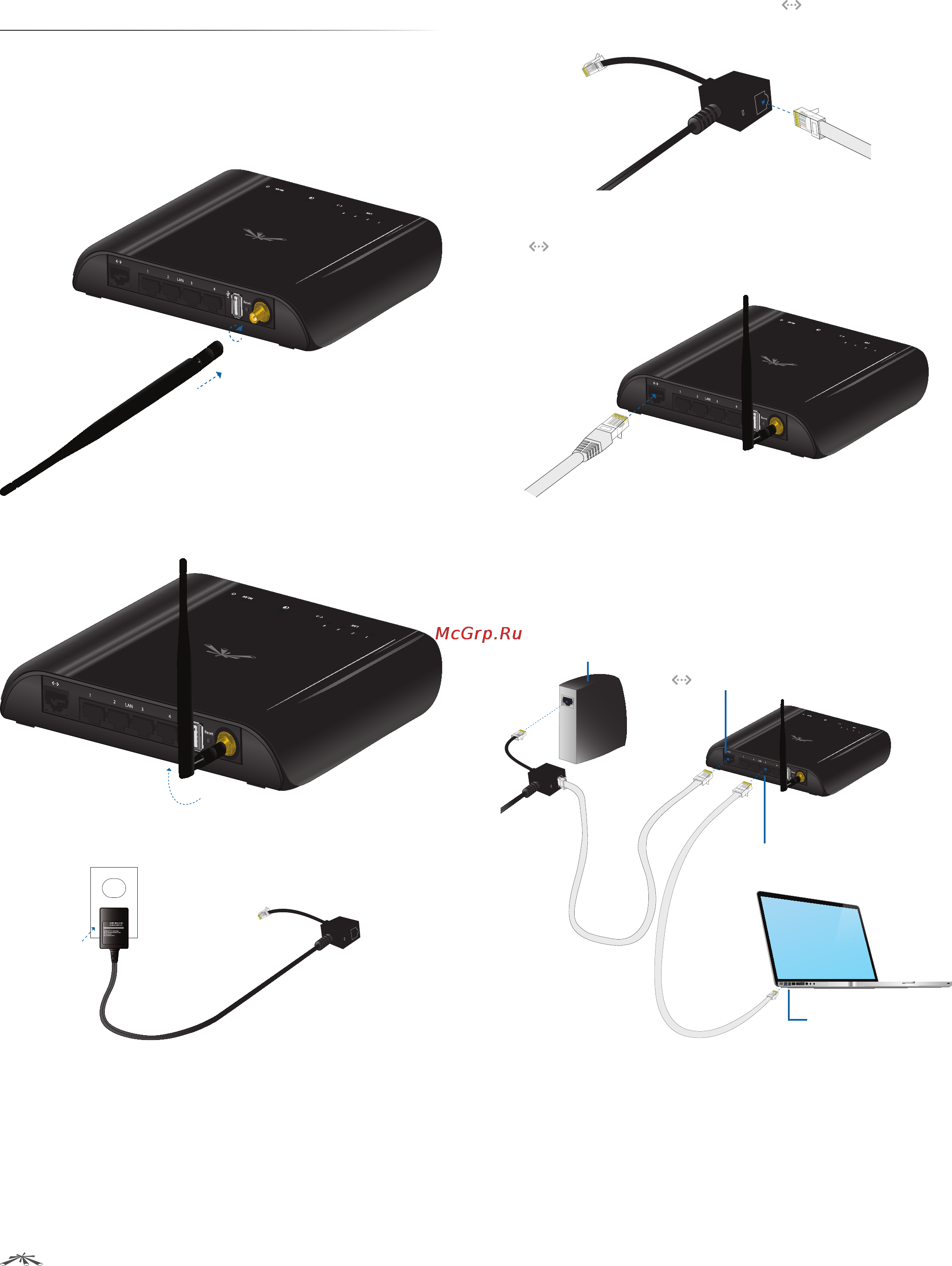

To install the AirRouter HP, perform the following steps:
1. Connect the antenna to the antenna connector on the
AirRouter HP by rotating it clockwise.
2. Raise the antenna to an upright position.
3. Connect the power adapter to a power outlet.
4. Connect an Ethernet cable to the Main Ethernet
port on the power adapter.
5. Connect the other end of the Ethernet cable to the
Main Ethernet port on the AirRouter HP. The Power
LED will light up on the front of the AirRouter HP.
6. Connect the Ethernet connector on the power adapter
to your broadband modem. Connect another Ethernet
cable from your computer to a LAN port (1, 2, 3, or 4)
on the AirRouter HP.
Broadband Modem
Main Ethernet Port
LAN Port 1, 2, 3, or 4
Ethernet Port on
Computer
