44
Chapter 9: System TabAirRouter
HP User Guide
Ubiquiti Networks, Inc.
Site Survey

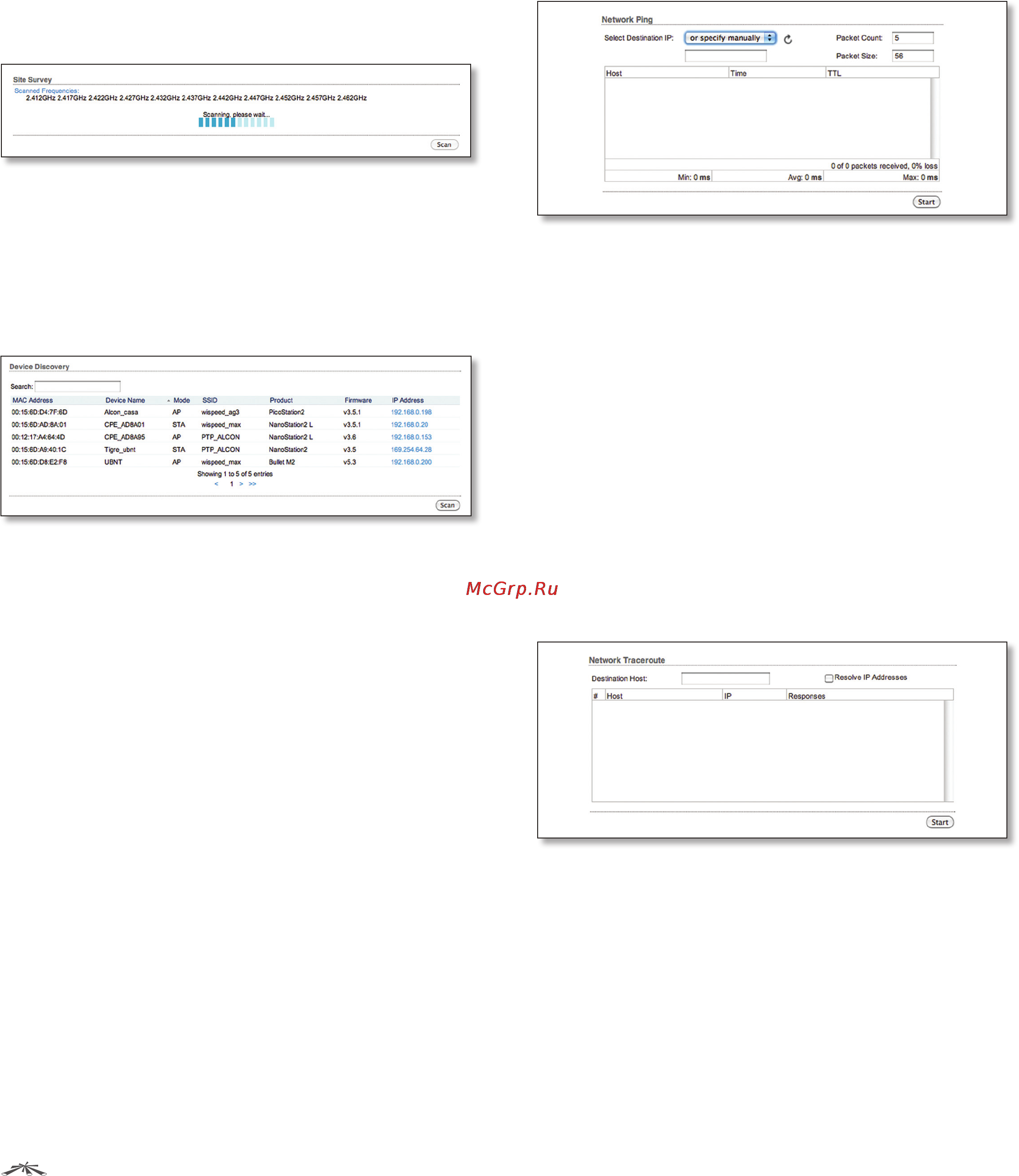

The Site Survey tool will search for wireless networks
in range on all supported channels while the device is
operating in Access Point or Station mode. In Station mode,
the channel list can be modified.
Site Survey reports the MAC Address, SSID, Device
Name, Encryption type (if any), Signal Strength/Noise in
dBm, Frequency in GHz and the wireless channel of all
surrounding Access Points.
Scan Refresh the window using the Scan button.
Discovery
The Device Discovery tool will scan for all Ubiquiti Networks
devices within the network the AirRouter HP is a member
of. The search field will automatically filter devices
containing specified names or numbers as you type them.
Device Discovery Shows device MAC Address, Device
Name, Wireless Mode, SSID, Product type, Firmware
version and IP Address. To access a device configuration
through his Web GUI, click the device’s IP Address.
Scan Discovery can be updated using the Scan button.
Ping
The Ping tool will ping other devices on the network
directly from the AirOS device and is used to check the
preliminary link quality and packet latency estimation
between two network devices using ICMP packets.
Network Ping
Select Destination IP A remote system IP can be selected
from the list which is generated automatically or can be
specified manually.
Packet Count Enter the number of packets to send for
the ping test.
Packet Size The size of the ICMP packets can be specified
in this field.
Start The test is started using this button.
Packet loss statistics and latency time evaluation is
provided after the test is completed.
Traceroute
The TraceRoute tool allows tracing the hops from the
AirRouter HP to a selected outgoing IP address. It should
be used for finding the route taken by ICMP packets across
the network to the Destination host.
Destination Host Enter the IP address of the destination
host to which you want to find the route.
Resolve IP Addresses Resolution of the IP addresses
(symbolically rather than numerically) can be enabled by
selecting this option.
Start The test is started using this button.
