1
Chapter 1: Product OverviewAirRouter
HP User Guide
Ubiquiti Networks, Inc.
Chapter 1: Product Overview
Thank you for purchasing the Ubiquiti AirRouter HP.

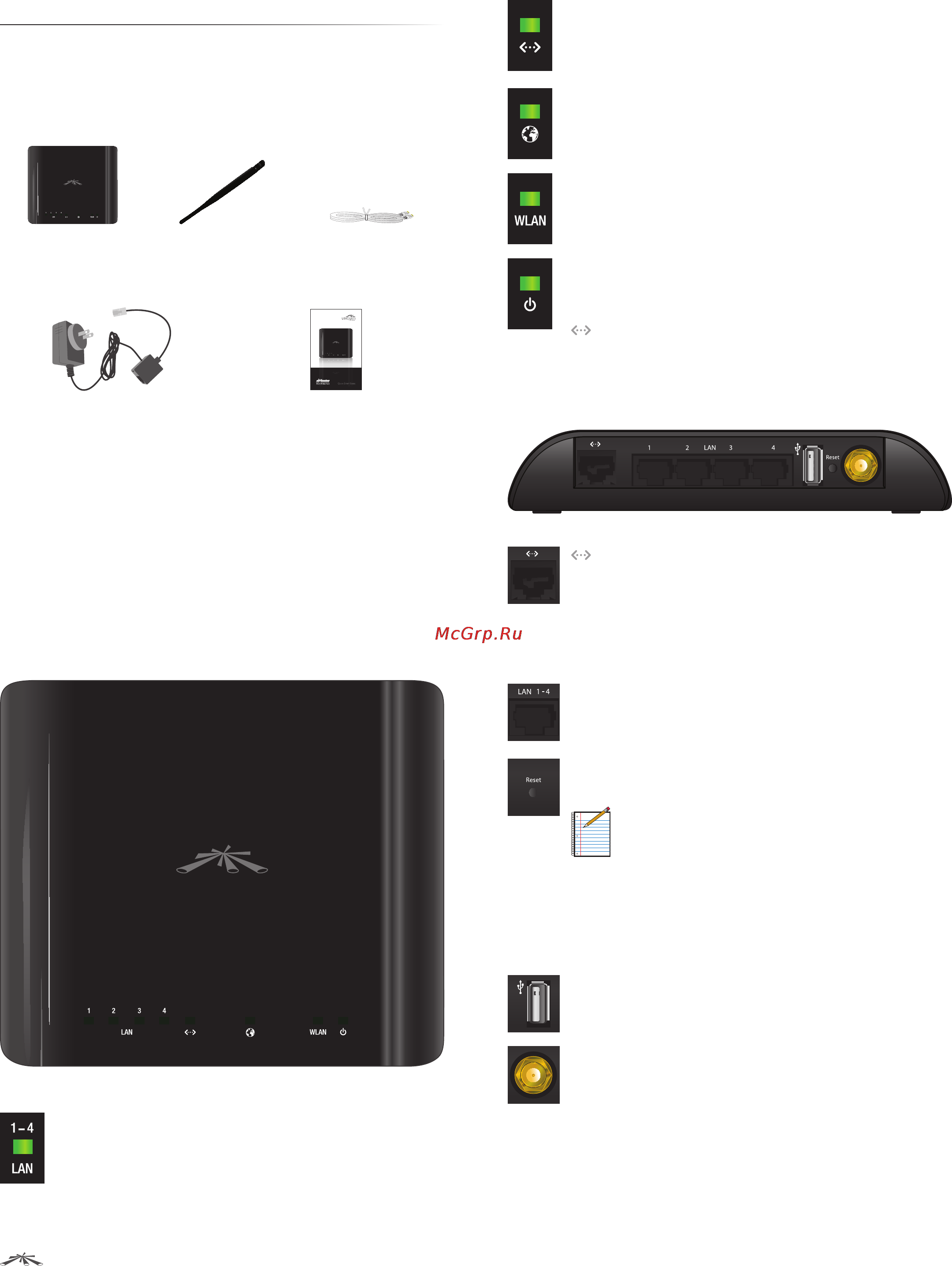

Package Contents
AirRouter Antenna Ethernet Cable
Power Adapter Quick Start Guide
System Requirements
• Microsoft Windows XP, Windows Vista, Windows 7,
Linux, or Mac OS X
• Java Runtime Environment 1.6 (or above) for the AirView
utility
• Web Browser: Mozilla Firefox, Apple Safari, or Microsoft
Internet Explorer
Top View
LAN LEDs (1-4) Displays the status of the wired
connections to Ethernet ports 1-4. Solid green
indicates a good connection. Flashing indicates
activity on the specific port.
Main Ethernet LED Displays the status of the
Main Ethernet port connection. Solid green
indicates a good connection. Flashing indicates
activity.
Internet LED Displays solid green when the
AirRouter HP is connected to the Internet. Flashes
to indicate Internet activity.
Wireless LAN LED Displays solid green when the
wireless LAN is enabled. It will flash to indicate
wireless activity.
Power LED Displays solid green when the Power
over Ethernet has been properly connected.
An Ethernet cable should be connected to the
MainEthernetportontheAirRouterHPandto
the power adapter.
Rear View
Main Ethernet Port Functions as the WAN
port in SOHO Router mode and connects your
AirRouter to your broadband modem or Internet
connection using a standard Ethernet cable. Also
functions as the Power over Ethernet port for the
AirRouter HP.
LAN Ports (1-4) Connects devices to your
AirRouter using standard Ethernet cables.
Reset Button Resets the AirRouter HP to the
factory default settings.
Note: Resetting the AirRouter HP to
factory default settings will erase custom
settings you have made. You can backup
your configuration from System >
Backup Configuration > Download
in the browser-based management
interface.
USB Port Reserved for future use.
Antenna Connector The AirRouter HP antenna
connects here.
