Chapter 4: Main TabAirRouter
HP User Guide
Ubiquiti Networks, Inc.
• Bytes transmitted/received Value represents the total
amount of data (in bytes) transmitted and received
during the connection.
• Negotiated Rate/Last Signal (dBm) Table The values
represent the received wireless signal level along with
the all data rates of recently received packets. N/A value
is represented as the Last Signal if no packets were
received on that particular data rate.
•
Reconnect To reconnect to the AP and reestablish the
wireless link, click Reconnect.
•
Refresh The list can be updated by clicking Refresh.

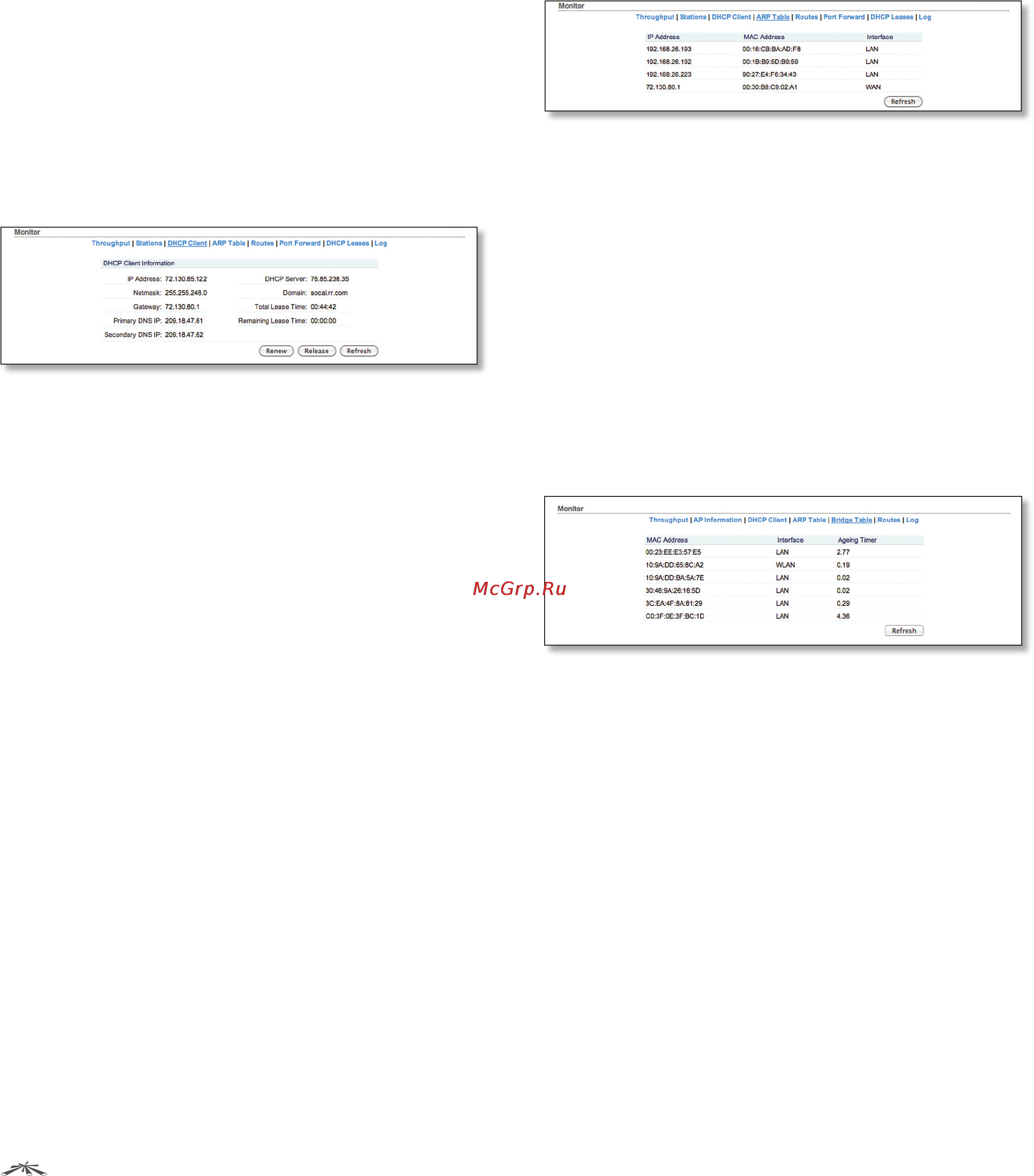

DHCP Client
(Applicable for Router and SOHO Router in DHCP mode
only.) Shows the device’s WAN IP address, Netmask, DNS
servers and Gateway while operating in DHCP Router
mode.
IP Address Displays the device’s WAN IP address while
operating in DHCP Client mode.
Netmask Displays the device’s netmask when operating
in DHCP Client mode. It is assigned automatically by the
DHCP server (not the AirRouter HP’s DHCP server), which
assigns the WAN IP address to the device.
Gateway Displays the device’s gateway when operating
in DHCP Client mode, which is assigned automatically by
the DHCP server (not the AirRouter HP’s DHCP server).
Primary/Secondary DNS IP Domain Name System (DNS)
is an Internet “phone book” which translates domain
names to IP addresses. These fields identify the server IP
addresses that the AirRouter HP uses for translation.
DHCP Server Displays the IP address of the DHCP Server
assigning the WAN IP Address to the AirRouter HP.
Domain Displays the domain name.
Total Lease Time Shows the total time (validity) of the
leased IP address assigned by the external DHCP server.
Remaining Lease Time Displays the remaining time of
the IP address leased by the external DHCP server.
Renew The IP address and can be renewed by clicking
Renew.
Release The IP address can be released by clicking
Release.
Refresh The list can be updated by clicking Refresh.
ARP Table
Lists all the entries of the ARP (Address Resolution
Protocol) Table currently recorded on the device.
ARP is used to associate each IP address to the unique
hardware address (MAC) of each device. It is important to
have unique IP addresses for each MAC or else there will
be ambiguous routes in the network.
IP Address Displays the assigned IP address.
MAC Address Displays the MAC address of the device.
Interface Displays the interface that the device is on.
Refresh The list can be updated by clicking Refresh.
Bridge Table
Displays the entries in the system Bridge Table when the
device is operating in Bridge mode.
The Bridge Table shows which bridge port the particular
station is associated with - in other words from which
interface (LAN or Wireless LAN, as WLAN) the network
device (defined by MAC Address) is reachable from. The
AirRouter HP will forward the packets to that port only
(thus saving a lot of redundant copies and transmits).
MAC Address Displays the MAC Address entry of each
network device that is associated to the station.
Interface Displays the interface the network device
(defined by MAC Address) is reachable from. Displayed as
LAN or WLAN.
Ageing Timer Displays how long it has been since a
packet has been detected from each MAC Address entry
(in seconds). After a particular time-out without detecting
any packet activity, the bridge will delete that address
from the Bridge Table.
•
Refresh The list can be updated by clicking Refresh.
