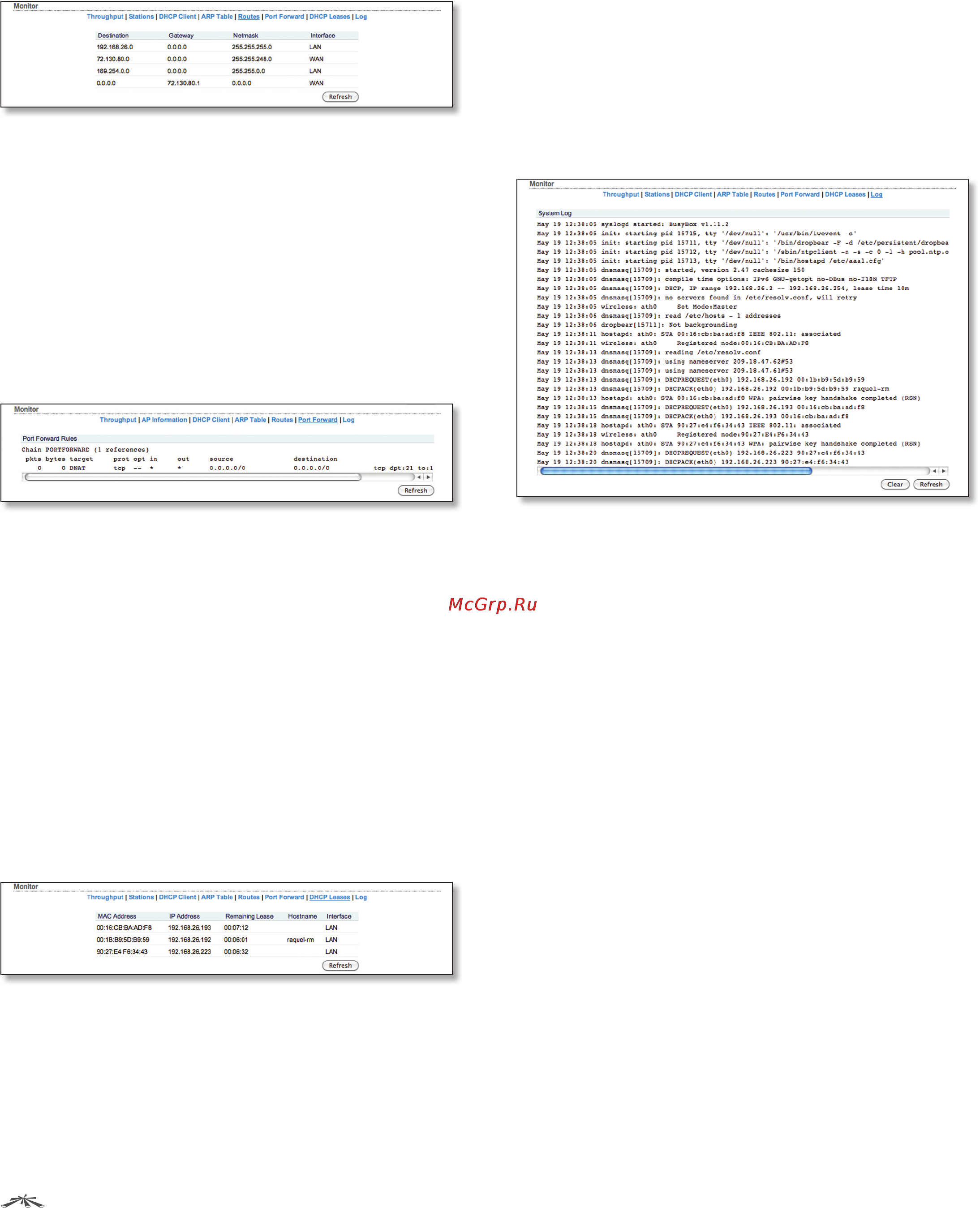

10
Chapter 4: Main TabAirRouter
HP User Guide
Ubiquiti Networks, Inc.
Routes
Lists all the entries in the system routing table, while the
device is operating in Router mode.
AirOS examines the destination IP address of each data
packet traveling through the system (Destination column)
and chooses the appropriate interface to forward the
packet to. The system choice depends on static routing
rules – entries, which are registered in the system routing
table. Static routes to specific hosts, networks or default
gateway (Gateway, Netmask and Interface columns) are
set up automatically according to the IP configuration of
all the AirOS interfaces.
• Refresh The list can be updated by clicking Refresh.
Port Forward
Lists active port forward entries in the PORTFORWARD
chain of the standard iptables nat table, while the device is
operating in Router mode.
Port forwarding is enabled and configured on the Network
tab.
Port Forwarding creates a transparent tunnel through a
firewall/NAT, granting an access from the WAN side to the
particular network service running on the LAN side.
• Refresh The list can be updated by clicking Refresh.
DHCP Leases
Shows the current status of the leased IP addresses by
the device’s DHCP server. This option is available if DHCP
Server is enabled while the device is operating in Router
mode.
MAC Address Displays the client’s MAC address, which is
connected to the Access Point.
IP Address Displays the client’s IP address leased by the
device’s DHCP server.
Remaining Lease Time Shows how long the leased IP
address will be valid and reserved for particular DHCP
client.
Hostname Displays the device name (hostname) of the
client receiving an IP lease.
Interface Name Displays the interface to which the
specific MAC address is connected.
Refresh The list can be updated by clicking Refresh.
More information is provided in the Wireless section.
Log
When logging is enabled (Services > System Log > Enable
Log) this option lists all registered system events. By
default, logging isn’t enabled.
Clear Deletes all entries in the system log.
Refresh Updates System Log content.
