43
Chapter 9: System TabAirRouter
HP User Guide
Ubiquiti Networks, Inc.

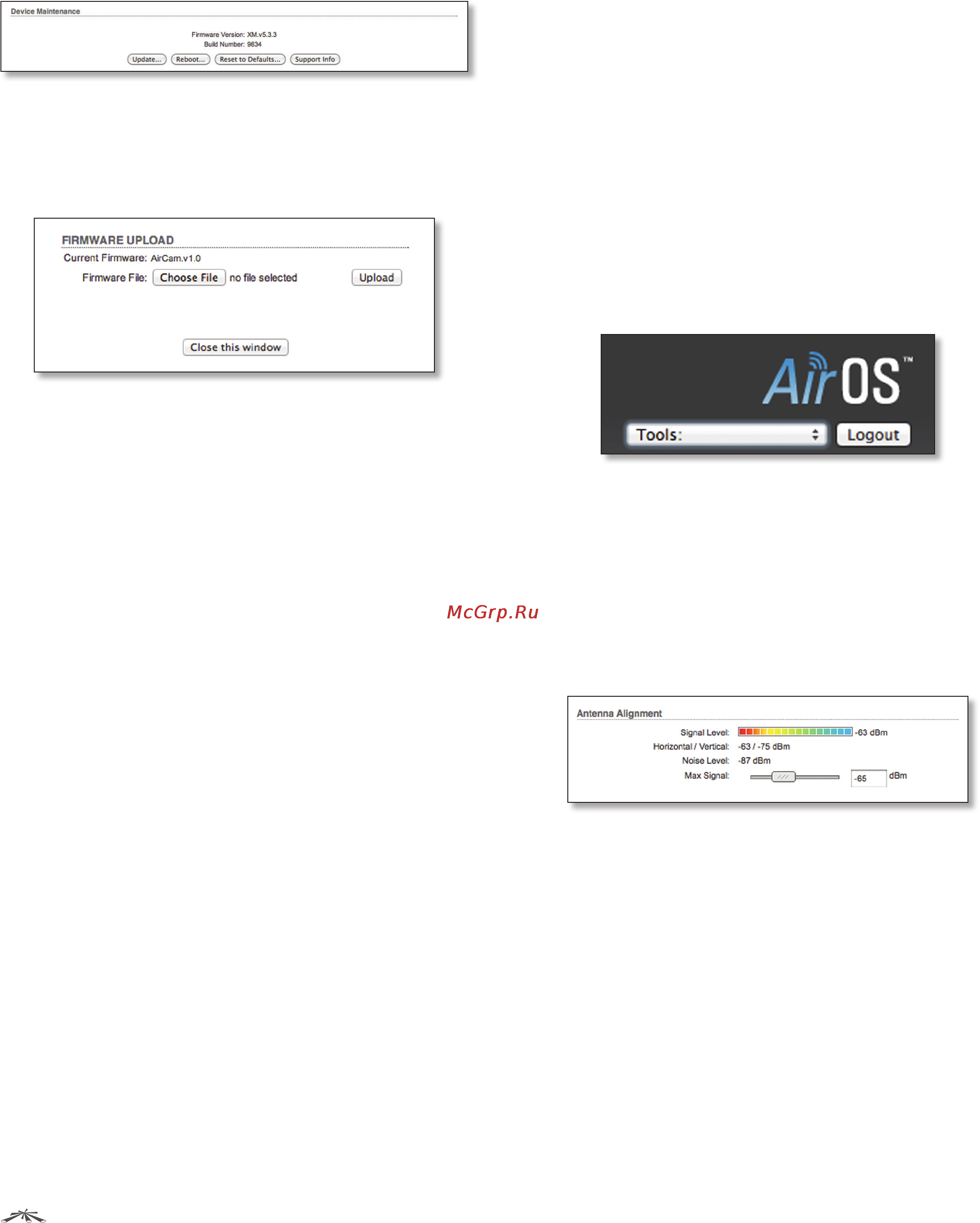

Device Maintenance
The controls in this section are dedicated for the device
maintenance routines: rebooting, resetting, generating of
the support information report.
Firmware Version Shows the current firmware version.
Build Number Displays the build number of the firmware
version loaded.
Update Click to update the device with new firmware.
• Firmware Upload
The device firmware update is compatible with all
configuration settings. System configurations are
preserved while the device is updated with a new
firmware version.
- Current Firmware Displays the version of the AirOS
firmware which is currently operating.
- Firmware File Click Browse to locate new firmware
file. Select the file and click Open. Once you’ve
selected a new firmware file, click Upload to upload
the new firmware to the device. Click Close this
window to cancel the new firmware upload process.
- Update Click the Update button to proceed with
the firmware upgrade routine (new firmware image
should be uploaded into the system first). Please be
patient, as the firmware upgrade routine can take 3-7
minutes. The AirRouter HP will be inaccessible until
the firmware upgrade routine is completed.
- Do not switch off, do not reboot and do not
disconnect the device from the power supply during
the firmware upgrade process as these actions will
damage the device!
- It is highly recommended that you back up the
system configuration and the Support Info file before
uploading the new configuration.
- Close this window At this point, closes the firmware
upgrade window if activated. This action will not
cancel the firmware upgrade process.
Reboot Click Reboot in order to initiate the full reboot
cycle of the device. Reboot is the same as the hardware
reboot which is similar to the power off - power on cycle.
The system configuration is not modified after the reboot
cycle completes. Any non-applied changes will be lost.
Reset to Defaults Use this to reset the AirRouter HP
to the factory default settings. This option will reboot
the AirRouter HP and all factory default settings will be
restored. You may want to use the Backup Configuration
option to download your current settings before selecting
this option.
Support Info This will generate a support information
file that the Ubiquiti support engineers can use when
providing customer support. This file only needs be
generated at their request.
Tools
AirOS on the AirRouter HP includes network
administration and monitoring tools that are available on
every tab.
• Align Antenna • Traceroute
• Site Survey • Speed Test
• Ping • AirView
Align Antenna
The Align Antenna utility allows the installer to point and
optimize the antenna in the direction of maximum link
signal.
Selection of the Align Antenna tool will open a new
window with signal strength indicator. Window reloads
every second displaying the signal strength of the last
received packet.
Signal Level/Horizontal/Vertical Displays the received
wireless signal levels for each polarity, while operating
in Station (or Station WDS) mode on MIMO 2x2 devices.
Signals Strength is measured in dBm.
Noise Level Value displays the value of the noise level
wireless signal was received.
Max Signal The Max Signal slider bar allows the range of
the meter to be either increased or reduced. If the range
is reduced, the color change will be more sensitive to
signal fluctuations indicating the offset of the maximum
indicator value and the scale itself.
