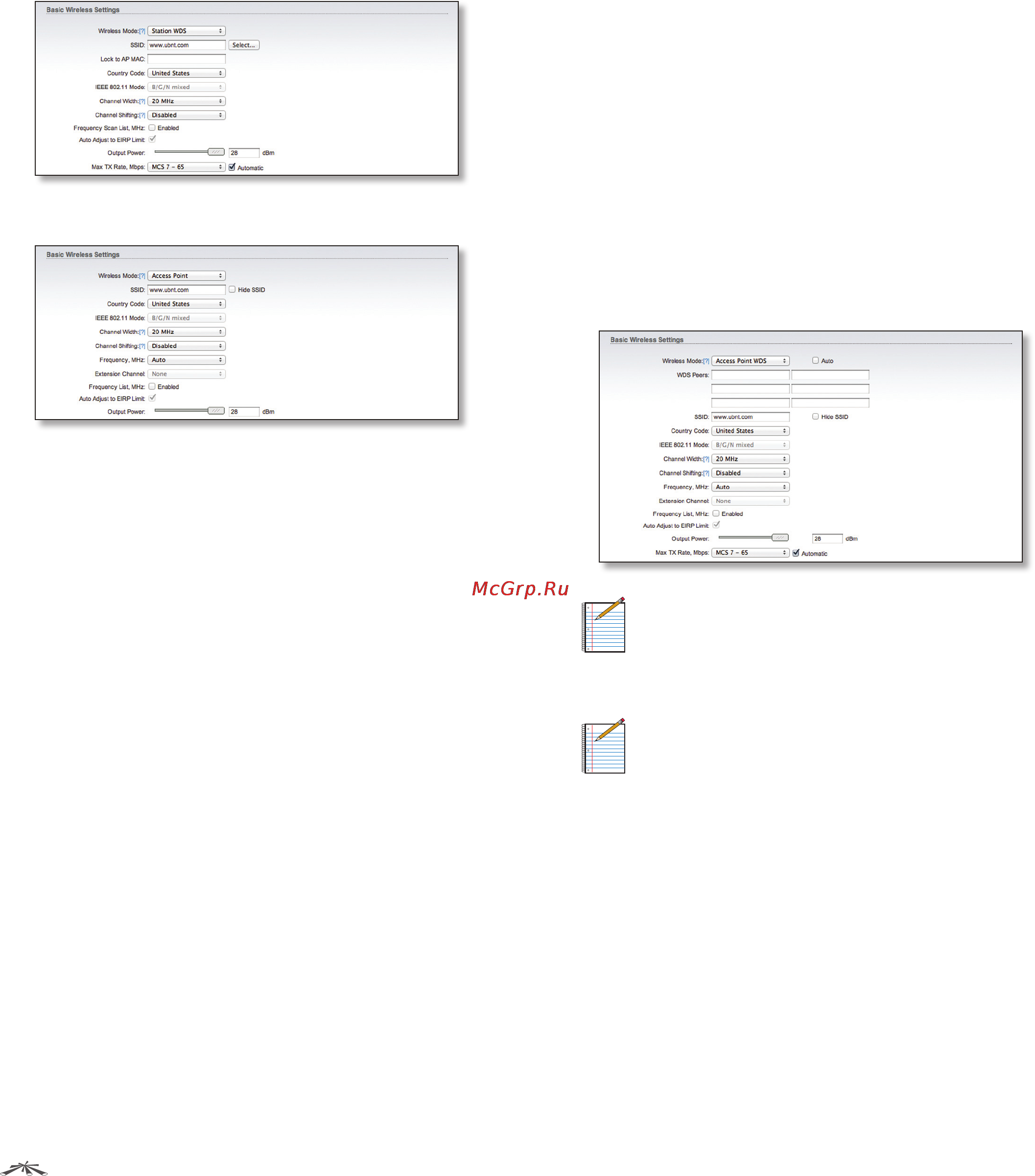

![Ubiquiti AirRouter HP Инструкция по эксплуатации онлайн [16/61] 67420](/views2/1072911/page16/bg10.png)
12
Chapter 5: Wireless TabAirRouter
HP User Guide
Ubiquiti Networks, Inc.
• Station WDS WDS stands for Wireless Distribution
System. Station WDS should be used while connecting
to an Access Point that is operating in WDS mode. This
mode is compatible with WPA/WPA2 encryption.
Station WDS mode enables packet forwarding at the
Layer 2 level.
The benefit of Station WDS is improved performance
and faster throughput. Station WDS - Bridge mode is
fully transparent for all Layer 2 protocols.
• Access Point This is 802.11 Access Point mode.
• Access Point WDS This is an 802.11 Access Point which
allows for Layer 2 bridging with Station WDS devices
using the WDS protocol. Access Point WDS is not fully
compatible with WPA/WPA2 encryption.
WDS allows you to bridge wireless traffic between
devices which are operating in Access Point mode.
Access Point is usually connected to a wired network
(Ethernet LAN) allowing wireless connection to the
wired network. By connecting Access Points to one
another in an extended service set using the WDS,
distant Ethernet connections can be bridged into a
single LAN.
It is very important that network loops should not be
created with either WDS bridges or combinations of
wired (Ethernet) connections and WDS bridges. Tree
or Star shape network topology should be used in all
WDS use-cases (i.e. If Access Point 2 and Access Point
3 are specified as the WDS peers of Access Point 1,
Access Point 2 should not be specified as the WDS peer
of Access Point 3 and Access Point 3 should not be
specified as the WDS peer of Access Point 2 in any case).
Mesh and Ring network topologies are not supported
by WDS and should be avoided in all use cases.
Note: Station WDS and Access Point WDS mode
use the WDS protocol which is not defined as
the standard thus compatibility issues between
equipment from different vendors may arise.
Note: When connecting devices in Access Point
WDS to Access Point WDS mode, the WPA/
WPA2 security methods will not function.
When connecting Access Point WDS devices
to other Access Point WDS device use none or
the WEP security method. However, this may
compromise the security of your network.
When connecting Station WDS clients to an
Access Point WDS device, all security methods
are available and work properly.
