Consumables and maintenance> 102

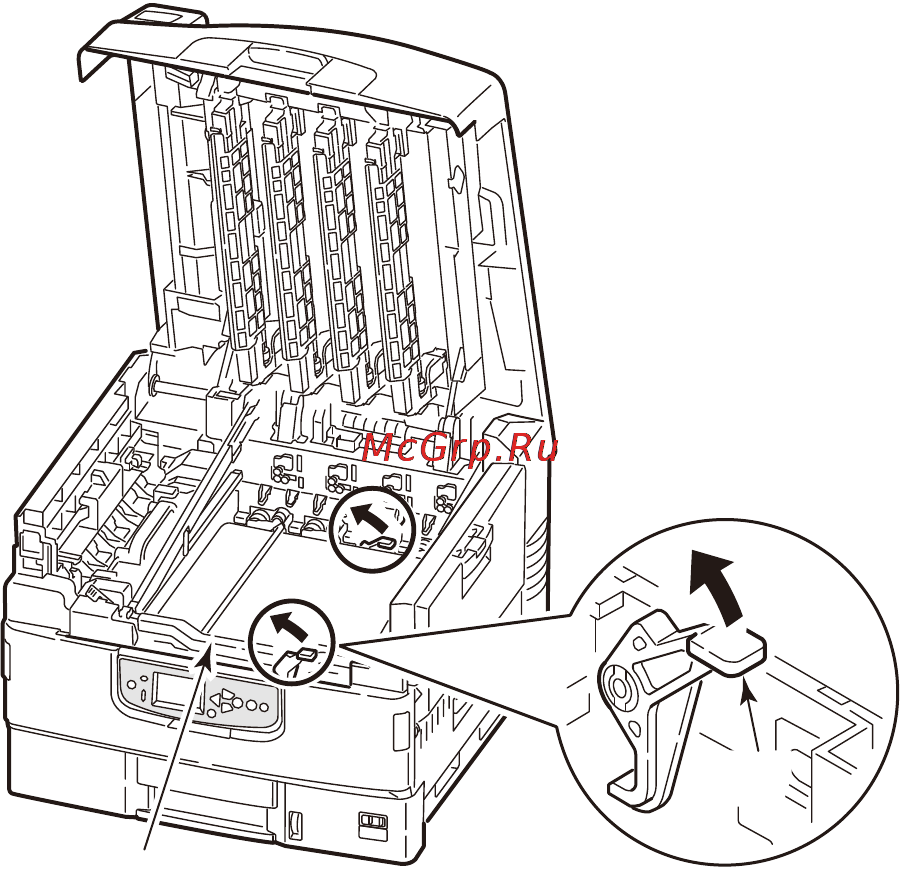

4. Pull the blue lock lever (3) (two sites) of the belt unit to the

direction of the arrow.

NOTE

Do not lift the drum basket (4).
