OKI C920WT [107/169] Fuser cover sheet replacement
![OKI C920WT [107/169] Fuser cover sheet replacement](/views2/1073999/page107/bg6b.png)
Consumables and maintenance> 107
F
USER
COVER
SHEET
REPLACEMENT

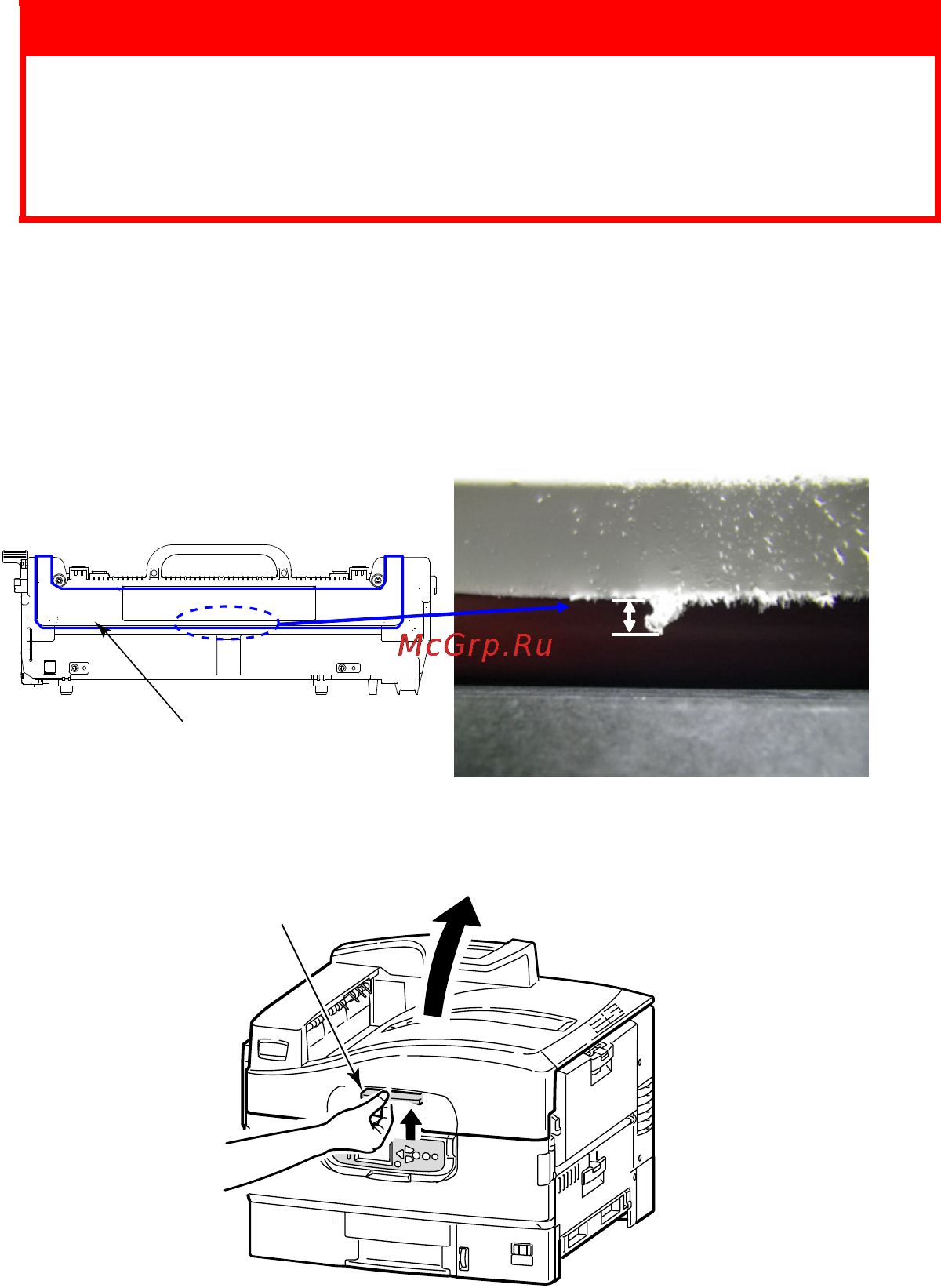

The printed image may be stained when the toner sticks to the fuser
unit and forms an icicle-like shape.
Replace the fuser cover sheet (1) before the length of the sticked
toner becomes more than 4 mm.
1. Squeeze the top cover handle (2) and open the top cover.
NOTE
Open the top cover fully while replacement. Otherwise the printer
may be damaged.
WARNING!
Be careful not to touch the fuser unit which may be hot
after printing. If the fuser unit is hot, wait until it cools
before attempting to remove and replace a fuser cover
sheet.
1
2
