![OKI C920WT [60/169] Print mode](/img/pdf.png)
OKI C920WT [60/169] Print mode
![OKI C920WT [60/169] Print mode](/views2/1073999/page60/bg3c.png)
Color setting> 60
P
RINT
M
ODE
You can specify whether to use white toner for printing when Color
Print is selected.
W
HITE
O
N
Selecting this prints documents using white toner. The object whose
color is explicitly set to white is printed with white toner. White On
is used when the background color of print media is not white.
W
HITE
O
FF
Selecting this prints documents without using white toner. The white
toner is not used for the object whose color is explicitly set to white.
White Off is used when the background color of print media is
white.
NOTE
When Gray Scale (White) Print is selected, white toner is used
regardless of the Print Mode setting.

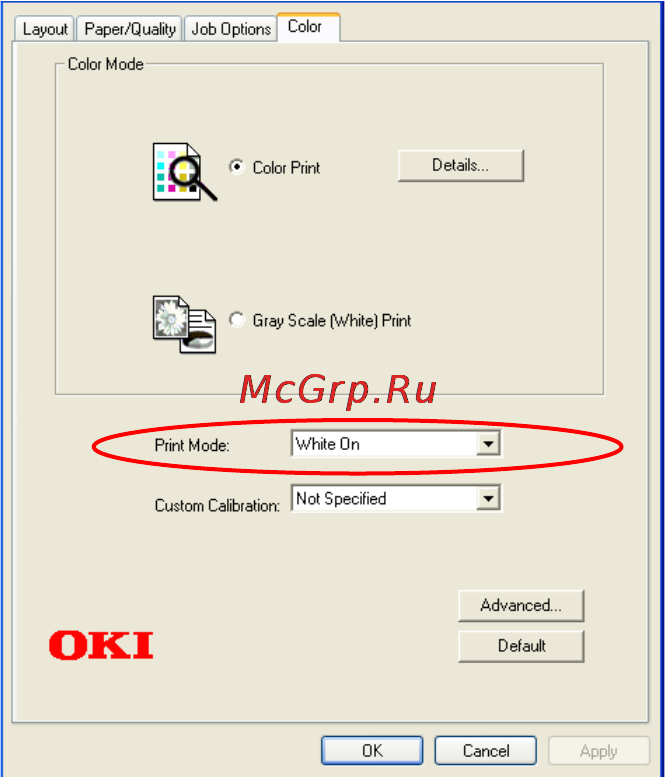

Windows
1. On the print dialog box, click the Color tab.
2. From Print Mode, select your preferred setting.
