Troubleshooting> 136
4. Put the paper guide back into position and close Tray 1 side
cover.
O
PEN
COVER
,
PAPER
JAM
,
SIDE
COVER

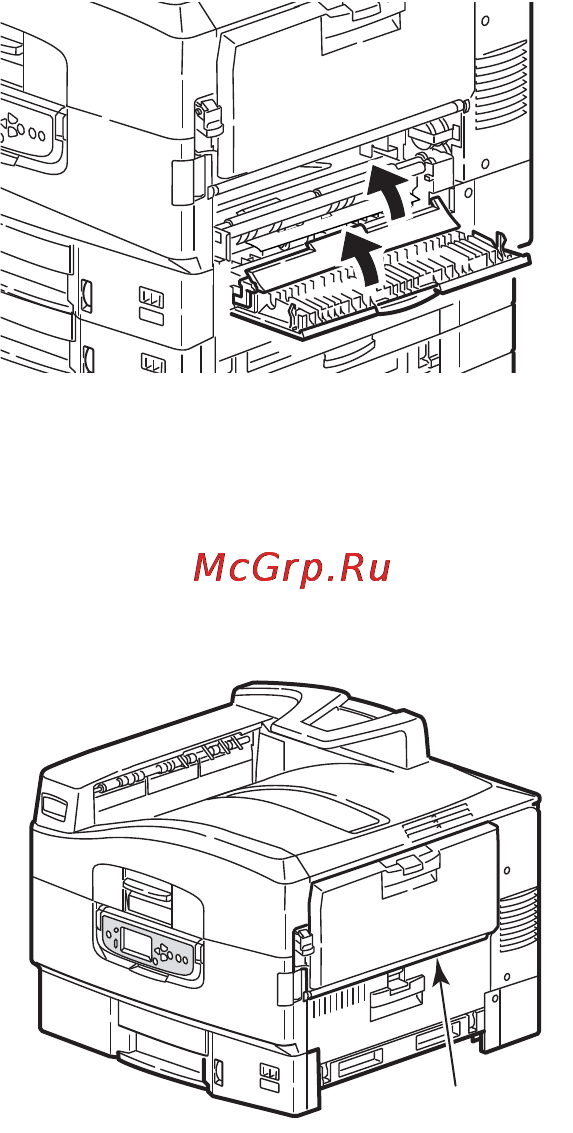

1. If the MP Tray is open, close it so that the side cover (1) is
visible.
1
