Consumables and maintenance> 115
W
ASTE
TONER
BOX
REPLACEMENT

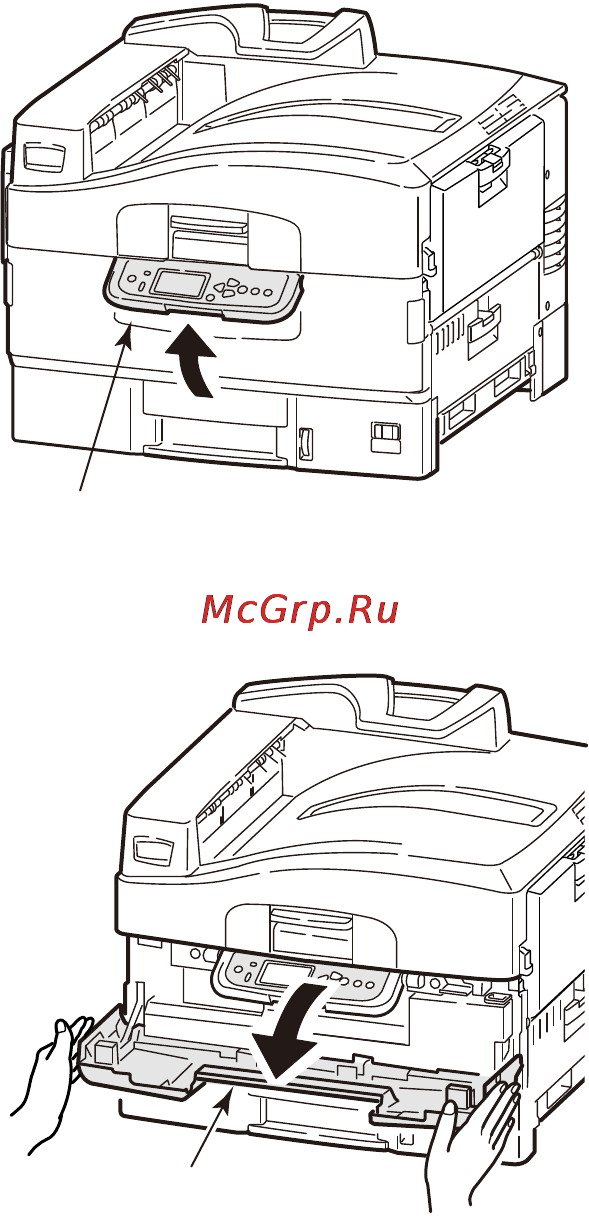

1. Lift the control panel (1) to a near horizontal position.
2. Holding the both sides of the front cover (2), pull it open.
1
2
